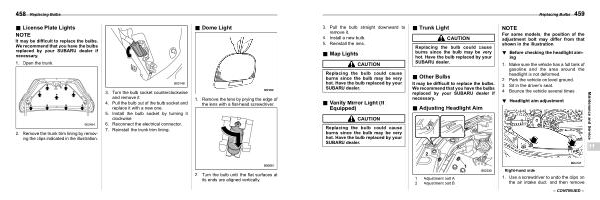

Replacing Bulbs 459 |
|||||||||||
|
3 . Pull the bulb straight downward to remove it .
4 . Install a new bulb . 5 . Reinstall the lens .
& Map Lights
CAUTION
s11be09
Replacing the bulb could cause burns since the bulb may be very hot . Have the bulb replaced by your SUBARU dealer .
|
& Vanity Mirror Light ( If Equipped )
CAUTION
s11be34
Replacing the bulb could cause burns since the bulb may be very hot . Have the bulb replaced by your SUBARU dealer .
|
& Trunk Light
CAUTION
s11be12
Replacing the bulb could cause burns since the bulb may be very hot . Have the bulb replaced by your SUBARU dealer .
& Other Bulbs s11be29
It may be difficult to replace the bulbs . We recommend that you have the bulbs replaced by your SUBARU dealer if necessary .
& Adjusting Headlight Aim
s11be57
|
NOTE
For some models , the position of the adjustment bolt may differ from that shown in the illustration .
! Before checking the headlight aiming s11be5701
1 . Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed .
2 . Park the vehicle on level ground . 3 . Sit in the driver ’ s seat . 4 . Bounce the vehicle several times .
! Headlight aim adjustment
s11be5702
|
Maintenance and Service
11
|
|||||||
Right-hand side |
|||||||||||
1 Adjustment bolt A 2 Adjustment bolt B |
1 . Use a screwdriver to undo the clips on the air intake duct , and then remove |
||||||||||
– CONTINUED – |
