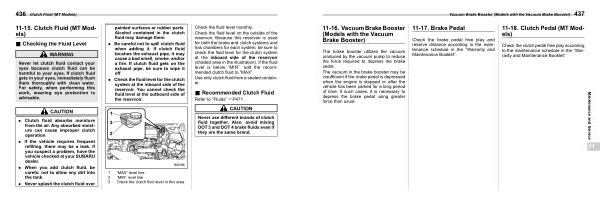

11-16 . Vacuum Brake Booster ( Models with the Vacuum Brake Booster )
s11aq
The brake booster utilizes the vacuum produced by the vacuum pump to reduce the force required to depress the brake pedal .
The vacuum in the brake booster may be insufficient if the brake pedal is depressed when the engine is stopped or after the vehicle has been parked for a long period of time . It such cases , it is necessary to depress the brake pedal using greater force than usual .
|
11-17 . Brake Pedal
s11ar
Check the brake pedal free play and reserve distance according to the maintenance schedule in the “ Warranty and Maintenance Booklet ”.
|
11-18 . Clutch Pedal ( MT Models )
s11as
Check the clutch pedal free play according to the maintenance schedule in the “ Warranty and Maintenance Booklet ”.
|
