NOTE
When the settings cannot be changed , the ON / OFF setting key will be grayed out .
Also , the following settings can be changed by operating the center information display .
. Warning volume . Sonar Audible Alarm
For details , refer to “ Car settings ” FP198 .
& RAB Warning Indicator
s07bn07
|
Contact the nearest SUBARU dealer for details .
& Handling of the Sonar Sensors s07bn06

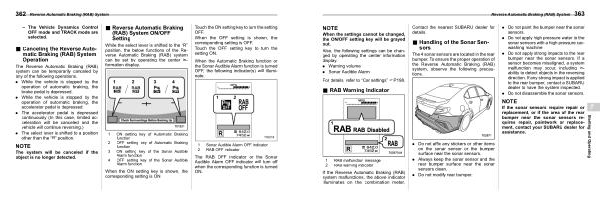

The 4 sonar sensors are located in the rear bumper . To ensure the proper operation of the Reverse Automatic Braking ( RAB ) system , observe the following precautions .
|
. Do not paint the bumper near the sonar sensors .
. Do not apply high pressure water to the sonar sensors with a high pressure carwashing machine .
. Do not apply strong impacts to the rear bumper near the sonar sensors . If a sensor becomes misaligned , a system malfunction may occur , including inability to detect objects in the reversing direction . If any strong impact is applied to the rear bumper , contact a SUBARU dealer to have the system inspected .
. Do not disassemble the sonar sensors .
NOTE
If the sonar sensors require repair or replacement , or if the area of the rear bumper near the sonar sensors requires repair , paintwork or replacement , contact your SUBARU dealer for assistance .
|
||||
|
1 RAB malfunction message 2 RAB warning indicator
If the Reverse Automatic Braking ( RAB ) system malfunctions , the above indicator illuminates on the combination meter .
|
. Do not affix any stickers or other items on the sonar sensor or the bumper surface near the sonar sensors .
. Always keep the sonar sensor and the rear bumper surface near the sonar sensors clean .
. Do not modify rear bumper .
|
7
Starting and Operating
|
