340

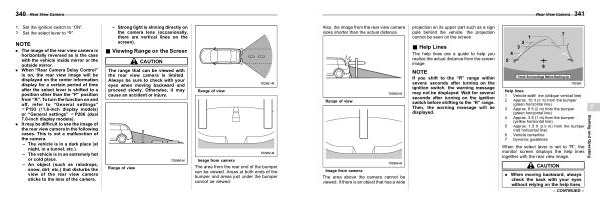

Rear View Camera
1 . Set the ignition switch to “ ON ”. 2 . Set the select lever to “ R ”.
NOTE
. The image of the rear view camera is horizontally reversed as is the case with the vehicle inside mirror or the outside mirror .
. When “ Rear Camera Delay Control ” is on , the rear view image will be displayed on the center information display for a certain period of time after the select lever is shifted to a position other than the “ P ” position from “ R ”. To turn the function on and off , refer to “ General settings ” FP193 ( 11.6-inch display models ) or “ General settings ” FP206 ( dual 7.0-inch display models ).
. It may be difficult to see the image of the rear view camera in the following cases . This is not a malfunction of the camera . – The vehicle is in a dark place ( at night , in a tunnel , etc .). – The vehicle is in an extremely hot or cold place .
– An object ( such as raindrops , snow , dirt , etc .) that disturbs the view of the rear view camera sticks to the lens of the camera .
– Strong light is shining directly on the camera lens ( occasionally , there are vertical lines on the screen ).
& Viewing Range on the Screen s07br02
CAUTION
The range that can be viewed with the rear view camera is limited . Always be sure to check with your eyes when moving backward and proceed slowly . Otherwise , it may cause an accident or injury .
Range of view
Range of view
Image from camera
The area from the rear end of the bumper can be viewed . Areas at both ends of the bumper and areas just under the bumper cannot be viewed .
