Combination Meter 23

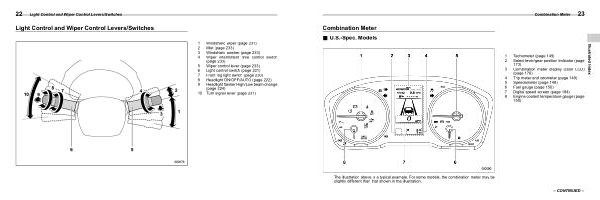

Combination Meter & U . S . -Spec . Models s00bd
s00bd01
1 Tachometer ( page 149 ) 2 Select lever / gear position indicator ( page
173 )
3 Combination meter display ( color LCD ) ( page 176 )
4 Trip meter and odometer ( page 149 ) 5 Speedometer ( page 148 ) 6 Fuel gauge ( page 150 ) 7 Digital speed screen ( page 184 ) 8 Engine coolant temperature gauge ( page
150 )
1
Illustrated Index
The illustration above is a typical example . For some models , the combination meter may be slightly different than that shown in the illustration .
– CONTINUED –
