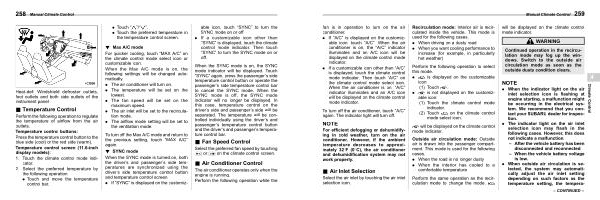

Manual Climate Control 259 |
||||
|
fan is in operation to turn on the air conditioner .
. If “ A / C ” is displayed on the customizable icon , touch “ A / C ”. When the air conditioner is on , the “ A / C ” indicator illuminates and an A / C icon will be displayed on the climate control mode indicator .
. If a customizable icon other than “ A / C ” is displayed , touch the climate control mode indicator . Then touch “ A / C ” on the climate control mode select icon . When the air conditioner is on , “ A / C ” indicator illuminates and an A / C icon will be displayed on the climate control mode indicator .
To turn off the air conditioner , touch “ A / C ” again . The indicator light will turn off .
NOTE
For efficient defogging or dehumidifying in cold weather , turn on the air conditioner . However , if the ambient temperature decreases to approximately 328F ( 08C ), the air conditioner and dehumidification system may not work properly .
& Air Inlet Selection s04ab08
Select the air inlet by touching the air inlet selection icon .
|
Recirculation mode : Interior air is recirculated inside the vehicle . This mode is used for the following cases .
. When driving on a dusty road
. When you want cooling performance to increase ( for example , in particularly hot weather )
Perform the following operation to select this mode .
. is displayed on the customizable icon : ( 1 ) Touch .
. is not displayed on the customizable icon : ( 1 ) Touch the climate control mode indicator . ( 2 ) Touch on the climate control mode select icon .
will be displayed on the climate control mode indicator .
Outside air circulation mode : Outside air is drawn into the passenger compartment . This mode is used for the following cases .
. When the road is no longer dusty
. When the interior has cooled to a comfortable temperature
Perform the same operation as the recirculation mode to change the mode .
|
will be displayed on the climate control mode indicator .
WARNING
Continued operation in the recirculation mode may fog up the windows . Switch to the outside air circulation mode as soon as the outside dusty condition clears .
NOTE
. When the indicator light on the air inlet selection icon is flashing at engine starting , a malfunction might be occurring in the electrical system . We recommend that you contact your SUBARU dealer for inspection .
. The indicator light on the air inlet selection icon may flash in the following cases . However , this does not indicate a malfunction . – After the vehicle battery has been disconnected and reconnected . – When the vehicle battery voltage is low .
. When outside air circulation is selected , the system may automatically adjust the air inlet setting depending on such factors as the temperature setting , the tempera-
|
4
Climate Control
|
|
– CONTINUED – |
