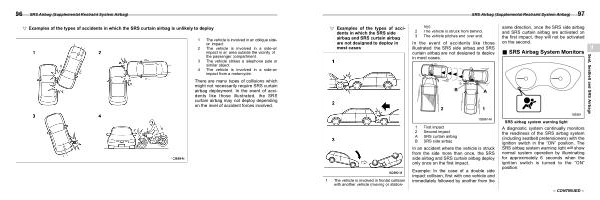

! Examples of the types of accidents in which the SRS side airbag and SRS curtain airbag are not designed to deploy in most cases s01ah030506 |
ary ). 2 The vehicle is struck from behind . 3 The vehicle pitches end over end .
In the event of accidents like those illustrated , the SRS side airbag and SRS curtain airbag are not designed to deploy in most cases .
|
same direction , once the SRS side airbag and SRS curtain airbag are activated on the first impact , they will not be activated on the second .
& SRS Airbag System Monitors s01ah04
|
1
Seat , Seatbelt and SRS Airbags
|
|||||
1 The vehicle is involved in frontal collision with another vehicle ( moving or station- |
1 First impact 2 Second impact A SRS curtain airbag B SRS side airbag
In an accident where the vehicle is struck from the side more than once , the SRS side airbag and SRS curtain airbag deploy only once on the first impact .
Example : In the case of a double side impact collision , first with one vehicle and immediately followed by another from the
|
SRS airbag system warning light
A diagnostic system continually monitors the readiness of the SRS airbag system ( including seatbelt pretensioners ) with the ignition switch in the “ ON ” position . The SRS airbag system warning light will show normal system operation by illuminating for approximately 6 seconds when the ignition switch is turned to the “ ON ” position .
– CONTINUED –
|
