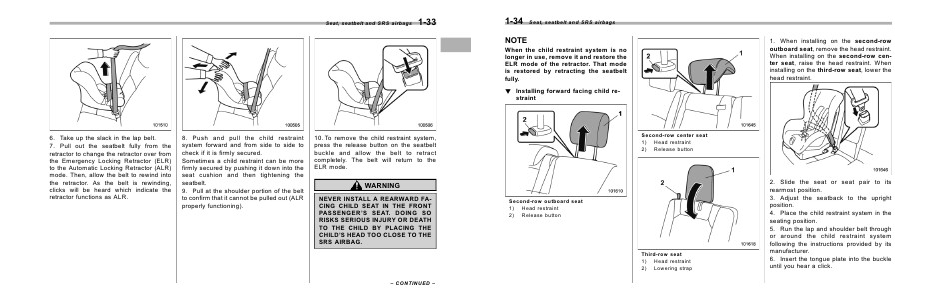

1-34
Seat, seatbelt and SRS airbags
NOTE
1. When installing on the second-row
outboard seat, remove the head restraint.
When installing on the second-row center seat, raise the head restraint. When
installing on the third-row seat, lower the
head restraint.
When the child restraint system is no
longer in use, remove it and restore the
ELR mode of the retractor. That mode
is restored by retracting the seatbelt
fully.
! Installing forward facing child restraint
Second-row center seat
1) Head restraint
2) Release button
Second-row outboard seat
1) Head restraint
2) Release button
Third-row seat
1) Head restraint
2) Lowering strap
2. Slide the seat or seat pair to its
rearmost position.
3. Adjust the seatback to the upright
position.
4. Place the child restraint system in the
seating position.
5. Run the lap and shoulder belt through
or around the child restraint system
following the instructions provided by its
manufacturer.
6. Insert the tongue plate into the buckle
until you hear a click.
