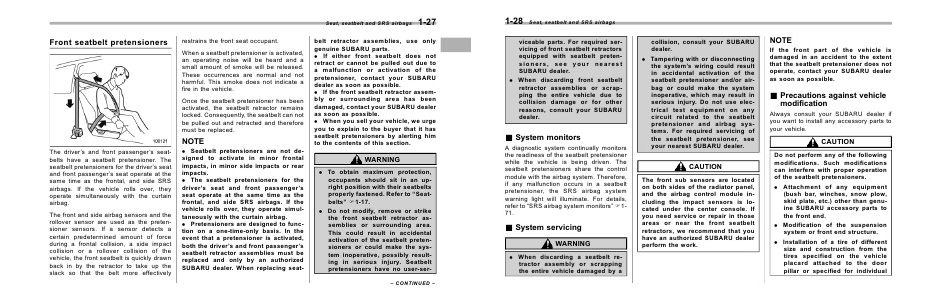

Seat, seatbelt and SRS airbags
Front seatbelt pretensioners
restrains the front seat occupant.
When a seatbelt pretensioner is activated,
an operating noise will be heard and a
small amount of smoke will be released.
These occurrences are normal and not
harmful. This smoke does not indicate a
fire in the vehicle.
Once the seatbelt pretensioner has been
activated, the seatbelt retractor remains
locked. Consequently, the seatbelt can not
be pulled out and retracted and therefore
must be replaced.
NOTE
The driver’s and front passenger’s seatbelts have a seatbelt pretensioner. The
seatbelt pretensioners for the driver’s seat
and front passenger’s seat operate at the
same time as the frontal, and side SRS
airbags. If the vehicle rolls over, they
operate simultaneously with the curtain
airbag.
The front and side airbag sensors and the
rollover sensor are used as the pretensioner sensors. If a sensor detects a
certain predetermined amount of force
during a frontal collision, a side impact
collision or a rollover collision of the
vehicle, the front seatbelt is quickly drawn
back in by the retractor to take up the
slack so that the belt more effectively
. Seatbelt pretensioners are not designed to activate in minor frontal
impacts, in minor side impacts or rear
impacts.
. The seatbelt pretensioners for the
driver’s seat and front passenger’s
seat operate at the same time as the
frontal, and side SRS airbags. If the
vehicle rolls over, they operate simultaneously with the curtain airbag.
. Pretensioners are designed to function on a one-time-only basis. In the
event that a pretensioner is activated,
both the driver’s and front passenger’s
seatbelt retractor assemblies must be
replaced and only by an authorized
SUBARU dealer. When replacing seat-
1-27
belt retractor assemblies, use only
genuine SUBARU parts.
. If either front seatbelt does not
retract or cannot be pulled out due to
a malfunction or activation of the
pretensioner, contact your SUBARU
dealer as soon as possible.
. If the front seatbelt retractor assembly or surrounding area has been
damaged, contact your SUBARU dealer
as soon as possible.
. When you sell your vehicle, we urge
you to explain to the buyer that it has
seatbelt pretensioners by alerting him
to the contents of this section.
WARNING
. To obtain maximum protection,
occupants should sit in an upright position with their seatbelts
properly fastened. Refer to “Seatbelts” F1-17.
. Do not modify, remove or strike
the front seatbelt retractor assemblies or surrounding area.
This could result in accidental
activation of the seatbelt pretensioners or could make the system inoperative, possibly resulting in serious injury. Seatbelt
pretensioners have no user-ser– CONTINUED –
