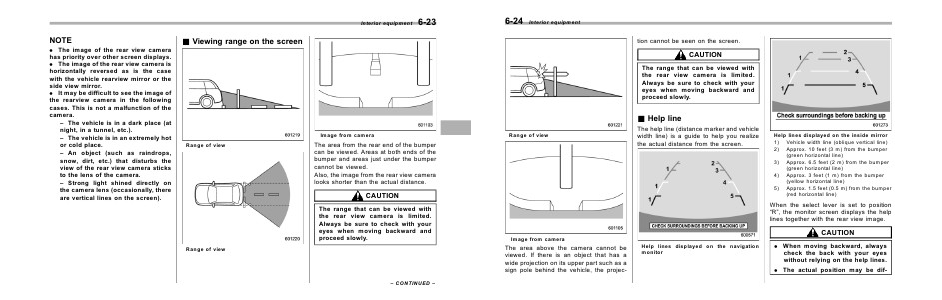

6-24
Interior equipment
tion cannot be seen on the screen.
CAUTION
The range that can be viewed with
the rear view camera is limited.
Always be sure to check with your
eyes when moving backward and
proceed slowly.
& Help line
Range of view
The help line (distance marker and vehicle
width line) is a guide to help you realize
the actual distance from the screen.
Help lines displayed on the inside mirror
1) Vehicle width line (oblique vertical line)
2) Approx. 10 feet (3 m) from the bumper
(green horizontal line)
3) Approx. 6.5 feet (2 m) from the bumper
(green horizontal line)
4) Approx. 3 feet (1 m) from the bumper
(yellow horizontal line)
5) Approx. 1.5 feet (0.5 m) from the bumper
(red horizontal line)
When the select lever is set to position
“R”, the monitor screen displays the help
lines together with the rear view image.
CAUTION
Image from camera
The area above the camera cannot be
viewed. If there is an object that has a
wide projection on its upper part such as a
sign pole behind the vehicle, the projec-
Help lines displayed on the navigation
monitor
. When moving backward, always
check the back with your eyes
without relying on the help lines.
. The actual position may be dif-
