Interior equipment
CAUTION
. Be careful not to pinch your hand
between the headrest and the
cargo area cover when you recline the second-row seat.
. Be careful not to scratch the rear
gate stays while extending and
rewinding the cover.
Scratches on the stays could
cause leakage of gas from the
stays, which may result in their
inability to hold the rear gate
open.
NOTE
When the head restraint is adjusted at
the rearmost position of the seat with
the seatback leaned back, the head
restraint comes in contact with the
cargo area cover. In this case, raise
the seatback before adjusting the head
restraint.
If the head restraint is correctly fixed in
any of the lock positions, the head
restraint does not contact the cargo
area cover even when the seatback is
reclined.

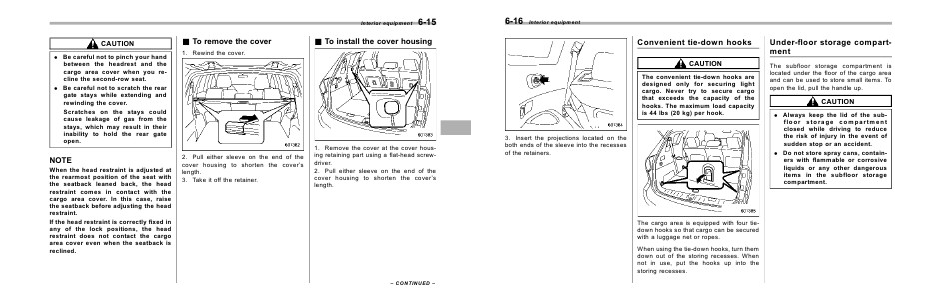

& To remove the cover
6-15
& To install the cover housing
1. Rewind the cover.
2. Pull either sleeve on the end of the
cover housing to shorten the cover’s
length.
3. Take it off the retainer.
1. Remove the cover at the cover housing retaining part using a flat-head screwdriver.
2. Pull either sleeve on the end of the
cover housing to shorten the cover’s
length.
– CONTINUED –
