Instruments and controls

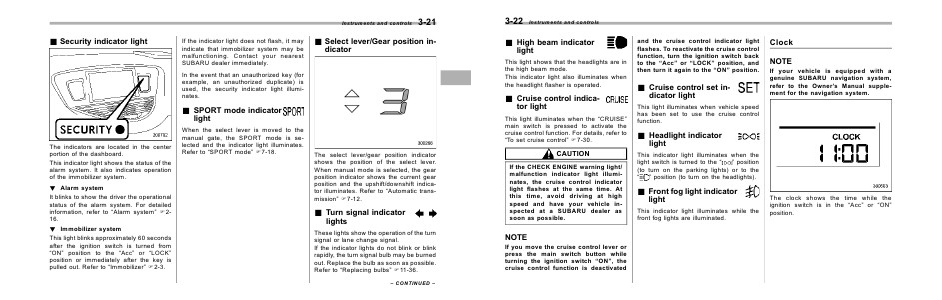

& Security indicator light
If the indicator light does not flash, it may
indicate that immobilizer system may be
malfunctioning. Contact your nearest
SUBARU dealer immediately.
3-21
& Select lever/Gear position indicator
In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light illuminates.
& SPORT mode indicator
light
The indicators are located in the center
portion of the dashboard.
This indicator light shows the status of the
alarm system. It also indicates operation
of the immobilizer system.
! Alarm system
It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to “Alarm system” F216.
! Immobilizer system
This light blinks approximately 60 seconds
after the ignition switch is turned from
“ON” position to the “Acc” or “LOCK”
position or immediately after the key is
pulled out. Refer to “Immobilizer” F2-3.
When the select lever is moved to the
manual gate, the SPORT mode is selected and the indicator light illuminates.
Refer to “SPORT mode” F7-18.
The select lever/gear position indicator
shows the position of the select lever.
When manual mode is selected, the gear
position indicator shows the current gear
position and the upshift/downshift indicator illuminates. Refer to “Automatic transmission” F7-12.
& Turn signal indicator
lights
These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to “Replacing bulbs” F11-36.
– CONTINUED –
