Keys and doors
different.

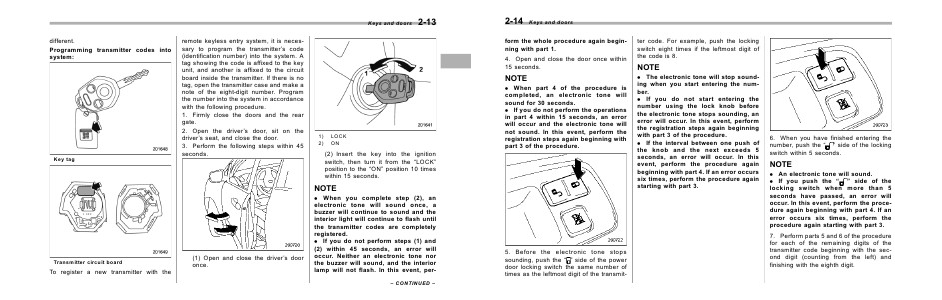

Programming transmitter codes into
system:
Key tag
remote keyless entry system, it is necessary to program the transmitter’s code
(identification number) into the system. A
tag showing the code is affixed to the key
unit, and another is affixed to the circuit
board inside the transmitter. If there is no
tag, open the transmitter case and make a
note of the eight-digit number. Program
the number into the system in accordance
with the following procedure.
1. Firmly close the doors and the rear
gate.
2. Open the driver’s door, sit on the
driver’s seat, and close the door.
3. Perform the following steps within 45
seconds.
1)
2)
2-13
LOCK
ON
(2) Insert the key into the ignition
switch, then turn it from the “LOCK”
position to the “ON” position 10 times
within 15 seconds.
NOTE
Transmitter circuit board
To register a new transmitter with the
(1) Open and close the driver’s door
once.
. When you complete step (2), an
electronic tone will sound once, a
buzzer will continue to sound and the
interior light will continue to flash until
the transmitter codes are completely
registered.
. If you do not perform steps (1) and
(2) within 45 seconds, an error will
occur. Neither an electronic tone nor
the buzzer will sound, and the interior
lamp will not flash. In this event, per– CONTINUED –
