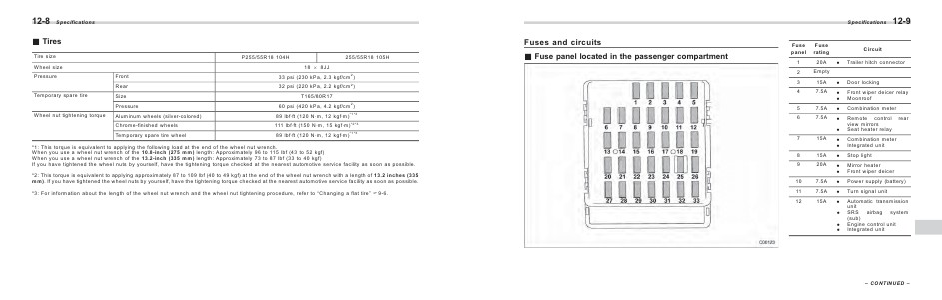

12-8
Specifications
& Tires
Tire size
P255/55R18 104H
Wheel size
255/55R18 105H
18 6 8JJ
Temporary spare tire
Front
33 psi (230 kPa, 2.3 kgf/cm2)
Rear
Pressure
32 psi (220 kPa, 2.2 kgf/cm2)
Size
Pressure
T165/80R17
60 psi (420 kPa, 4.2 kgf/cm2)
Aluminum wheels (silver-colored)
89 lbf·ft (120 N·m, 12 kgf·m)*1*3
Chrome-finished wheels
111 lbf·ft (150 N·m, 15 kgf·m)*2*3
Temporary spare tire wheel
Wheel nut tightening torque
89 lbf·ft (120 N·m, 12 kgf·m)*1*3
*1: This torque is equivalent to applying the following load at the end of the wheel nut wrench.
When you use a wheel nut wrench of the 10.8-inch (275 mm) length: Approximately 96 to 115 lbf (43 to 52 kgf)
When you use a wheel nut wrench of the 13.2-inch (335 mm) length: Approximately 73 to 87 lbf (33 to 40 kgf)
If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible.
*2: This torque is equivalent to applying approximately 87 to 109 lbf (40 to 49 kgf) at the end of the wheel nut wrench with a length of 13.2 inches (335
mm). If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible.
*3: For information about the length of the wheel nut wrench and the wheel nut tightening procedure, refer to “Changing a flat tire” F9-6.
