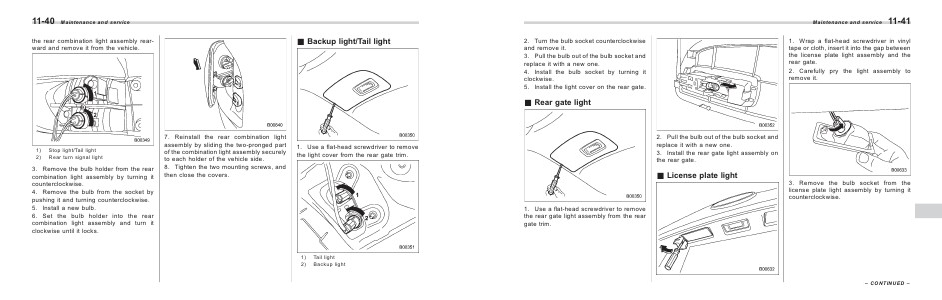

11-40
Maintenance and service
& Backup light/Tail light
the rear combination light assembly rearward and remove it from the vehicle.
1)
2)
Stop light/Tail light
Rear turn signal light
3. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
4. Remove the bulb from the socket by
pushing it and turning counterclockwise.
5. Install a new bulb.
6. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
7. Reinstall the rear combination light
assembly by sliding the two-pronged part
of the combination light assembly securely
to each holder of the vehicle side.
8. Tighten the two mounting screws, and
then close the covers.
1. Use a flat-head screwdriver to remove
the light cover from the rear gate trim.
1)
2)
Tail light
Backup light
