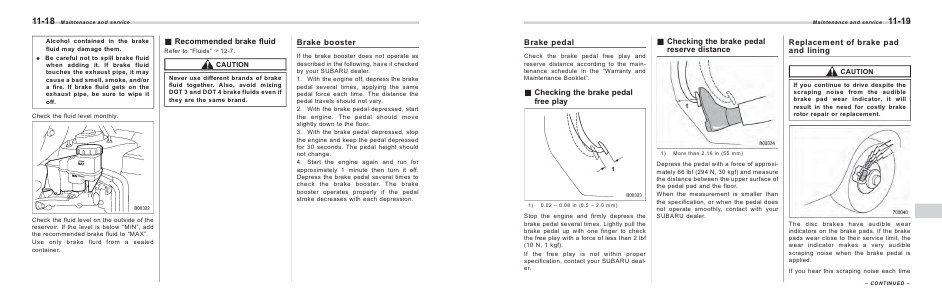

Maintenance and service
Brake pedal
Check the brake pedal free play and
reserve distance according to the maintenance schedule in the “Warranty and
Maintenance Booklet”.
& Checking the brake pedal
reserve distance
If you continue to drive despite the
scraping noise from the audible
brake pad wear indicator, it will
result in the need for costly brake
rotor repair or replacement.
1)
1)
0.02 – 0.08 in (0.5 – 2.0 mm)
Replacement of brake pad
and lining
CAUTION
& Checking the brake pedal
free play
Stop the engine and firmly depress the
brake pedal several times. Lightly pull the
brake pedal up with one finger to check
the free play with a force of less than 2 lbf
(10 N, 1 kgf).
If the free play is not within proper
specification, contact your SUBARU dealer.
11-19
More than 2.16 in (55 mm)
Depress the pedal with a force of approximately 66 lbf (294 N, 30 kgf) and measure
the distance between the upper surface of
the pedal pad and the floor.
When the measurement is smaller than
the specification, or when the pedal does
not operate smoothly, contact with your
SUBARU dealer.
The disc brakes have audible wear
indicators on the brake pads. If the brake
pads wear close to their service limit, the
wear indicator makes a very audible
scraping noise when the brake pedal is
applied.
If you hear this scraping noise each time
– CONTINUED –
