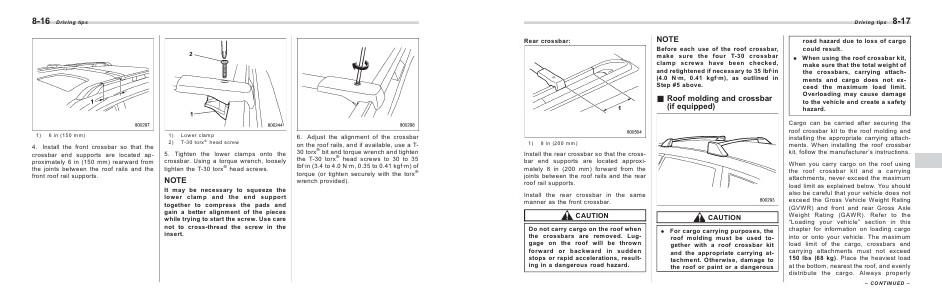

8-16
1)
Driving tips
6 in (150 mm)
4. Install the front crossbar so that the
crossbar end supports are located approximately 6 in (150 mm) rearward from
the joints between the roof rails and the
front roof rail supports.
1)
2)
Lower clamp
T-30 torx® head screw
5. Tighten the lower clamps onto the
crossbar. Using a torque wrench, loosely
tighten the T-30 torx® head screws.
NOTE
It may be necessary to squeeze the
lower clamp and the end support
together to compress the pads and
gain a better alignment of the pieces
while trying to start the screw. Use care
not to cross-thread the screw in the
insert.
6. Adjust the alignment of the crossbar
on the roof rails, and if available, use a T30 torx® bit and torque wrench and tighten
the T-30 torx® head screws to 30 to 35
lbf·in (3.4 to 4.0 N·m, 0.35 to 0.41 kgf·m) of
torque (or tighten securely with the torx®
wrench provided).
