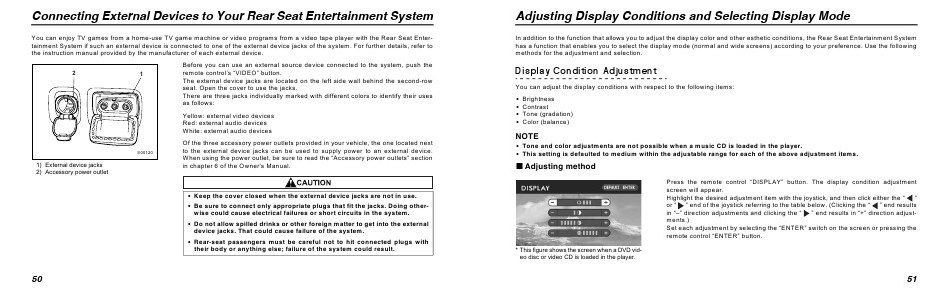

Connecting External Devices to Your Rear Seat Entertainment System
You can enjoy TV games from a home-use TV game machine or video programs from a video tape player with the Rear Seat Entertainment System if such an external device is connected to one of the external device jacks of the system. For further details, refer to
the instruction manual provided by the manufacturer of each external device.
2

1

Before you can use an external source device connected to the system, push the
remote control’s “VIDEO” button.
The external device jacks are located on the left side wall behind the second-row
seat. Open the cover to use the jacks.
There are three jacks individually marked with different colors to identify their uses
as follows:
Yellow: external video devices
Red: external audio devices
White: external audio devices

S00120

1) External device jacks
2) Accessory power outlet

Of the three accessory power outlets provided in your vehicle, the one located next
to the external device jacks can be used to supply power to an external device.
When using the power outlet, be sure to read the “Accessory power outlets” section
in chapter 6 of the Owner’s Manual.

Keep the cover closed when the external device jacks are not in use.
Be sure to connect only appropriate plugs that fit the jacks. Doing otherwise could cause electrical failures or short circuits in the system.
Do not allow spilled drinks or other foreign matter to get into the external
device jacks. That could cause failure of the system.
Rear-seat passengers must be careful not to hit connected plugs with
their body or anything else; failure of the system could result.

50
