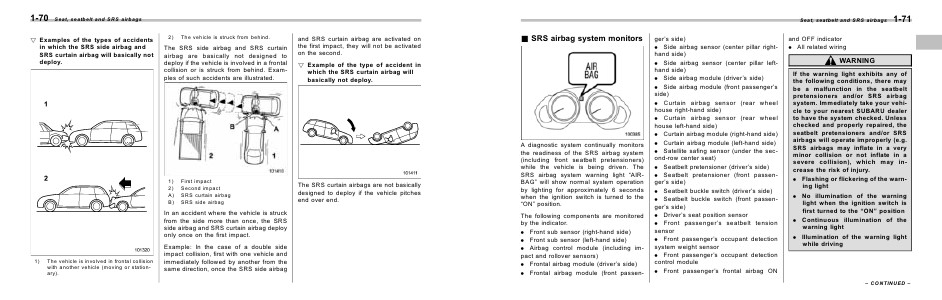

Seat, seatbelt and SRS airbags
& SRS airbag system monitors
A diagnostic system continually monitors
the readiness of the SRS airbag system
(including front seatbelt pretensioners)
while the vehicle is being driven. The
SRS airbag system warning light “AIRBAG” will show normal system operation
by lighting for approximately 6 seconds
when the ignition switch is turned to the
“ON” position.
The following components are monitored
by the indicator.
. Front sub sensor (right-hand side)
. Front sub sensor (left-hand side)
. Airbag control module (including impact and rollover sensors)
. Frontal airbag module (driver’s side)
. Frontal airbag module (front passen-
ger’s side)
. Side airbag sensor (center pillar righthand side)
. Side airbag sensor (center pillar lefthand side)
. Side airbag module (driver’s side)
. Side airbag module (front passenger’s
side)
. Curtain airbag sensor (rear wheel
house right-hand side)
. Curtain airbag sensor (rear wheel
house left-hand side)
. Curtain airbag module (right-hand side)
. Curtain airbag module (left-hand side)
. Satellite safing sensor (under the second-row center seat)
. Seatbelt pretensioner (driver’s side)
. Seatbelt pretensioner (front passenger’s side)
. Seatbelt buckle switch (driver’s side)
. Seatbelt buckle switch (front passenger’s side)
. Driver’s seat position sensor
. Front passenger’s seatbelt tension
sensor
. Front passenger’s occupant detection
system weight sensor
. Front passenger’s occupant detection
control module
. Front passenger’s frontal airbag ON
1-71
and OFF indicator
. All related wiring
WARNING
If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system. Immediately take your vehicle to your nearest SUBARU dealer
to have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will operate improperly (e.g.
SRS airbags may inflate in a very
minor collision or not inflate in a
severe collision), which may increase the risk of injury.
. Flashing or flickering of the warning light
. No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
. Continuous illumination of the
warning light
. Illumination of the warning light
while driving
– CONTINUED –
