1-48

Seat, seatbelt and SRS airbags
9)

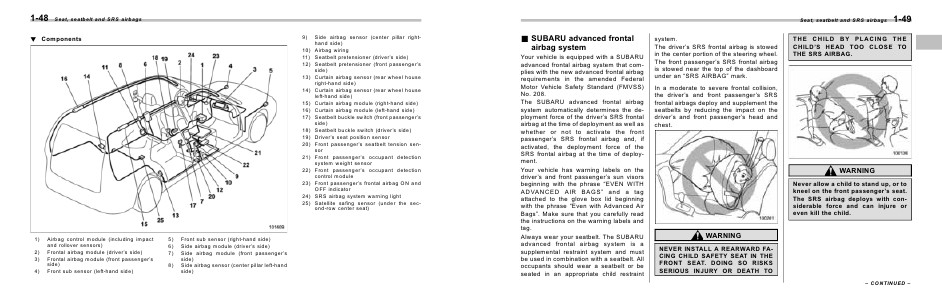

! Components

10)
11)
12)
13)
14)
15)
16)
17)
18)
19)
20)
21)
22)
23)
24)
25)

1)
2)
3)
4)

Airbag control module (including impact
and rollover sensors)
Frontal airbag module (driver’s side)
Frontal airbag module (front passenger’s
side)
Front sub sensor (left-hand side)

5)
6)
7)
8)

Front sub sensor (right-hand side)
Side airbag module (driver’s side)
Side airbag module (front passenger’s
side)
Side airbag sensor (center pillar left-hand
side)

Side airbag sensor (center pillar righthand side)
Airbag wiring
Seatbelt pretensioner (driver’s side)
Seatbelt pretensioner (front passenger’s
side)
Curtain airbag sensor (rear wheel house
right-hand side)
Curtain airbag sensor (rear wheel house
left-hand side)
Curtain airbag module (right-hand side)
Curtain airbag module (left-hand side)
Seatbelt buckle switch (front passenger’s
side)
Seatbelt buckle switch (driver’s side)
Driver’s seat position sensor
Front passenger’s seatbelt tension sensor
Front passenger
