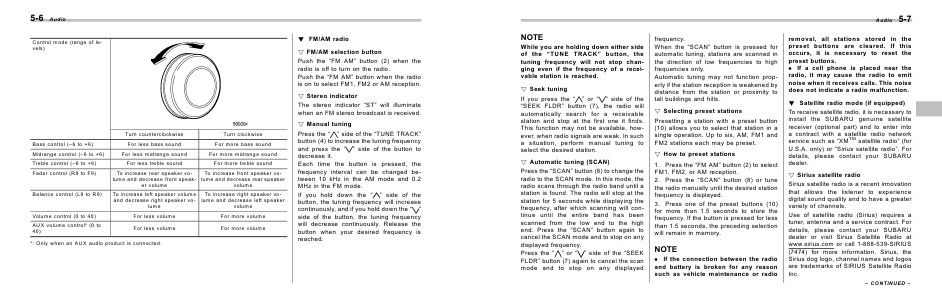

5-6
Audio
! FM/AM radio
Control mode (range of levels)
! FM/AM selection button
Push the “FM AM” button (2) when the
radio is off to turn on the radio.
Push the “FM AM” button when the radio
is on to select FM1, FM2 or AM reception.
! Stereo indicator
The stereo indicator “ST” will illuminate
when an FM stereo broadcast is received.
Turn counterclockwise
Bass control (−6 to +6)
Midrange control (−6 to +6)
Treble control (−6 to +6)
Turn clockwise
For less bass sound
For more bass sound
For less midrange sound
For more midrange sound
For less treble sound
For more treble sound
Fader control (R9 to F9)
To increase rear speaker voTo increase front speaker volume and decrease front speak- lume and decrease rear speaker
er volume
volume
Balance control (L9 to R9)
To increase left speaker volume To increase right speaker voand decrease right speaker vo- lume and decrease left speaker
volume
lume
Volume control (0 to 40)
For less volume
For more volume
AUX volume control* (0 to
40)
For less volume
For more volume
*: Only when an AUX audio product is connected.
! Manual tuning
Press the “ ” side of the “TUNE TRACK”
button (4) to increase the tuning frequency
and press the “ ” side of the button to
decrease it.
Each time the button is pressed, the
frequency interval can be changed between 10 kHz in the AM mode and 0.2
MHz in the FM mode.
If you hold down the “ ” side of the
button, the tuning frequency will increase
continuously, and if you hold down the “ ”
side of the button, the tuning frequency
will decrease continuously. Release the
button when your desired frequency is
re ached.
