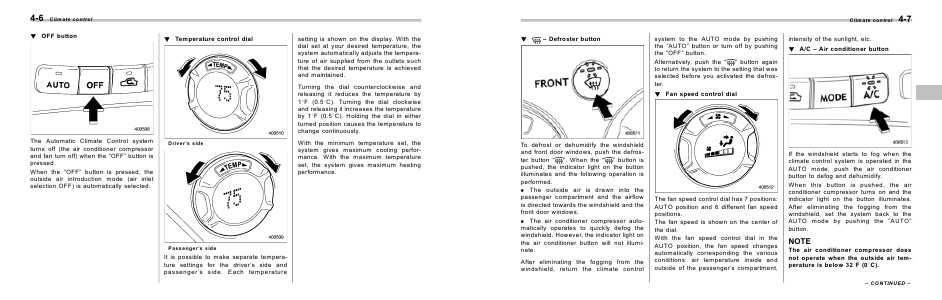

4-6
Climate control
! OFF button
! Temperature control dial
setting is shown on the display. With the
dial set at your desired temperature, the
system automatically adjusts the temperature of air supplied from the outlets such
that the desired temperature is achieved
and maintained.
Turning the dial counterclockwise and
releasing it reduces the temperature by
18F (0.58C). Turning the dial clockwise
and releasing it increases the temperature
by 18F (0.58C). Holding the dial in either
turned position causes the temperature to
change continuously.
The Automatic Climate Control system
turns off (the air conditioner compressor
and fan turn off) when the “OFF” button is
pressed.
When the “OFF” button is pressed, the
outside air introduction mode (air inlet
selection OFF) is automatically selected.
Driver’s side
Passenger’s side
It is possible to make separate temperature settings for the driver’s side and
passenger’s side. Each temperature
With the minimum temperature set, the
system gives maximum cooling performance. With the maximum temperature
set, the system gives maximum heating
performance.
