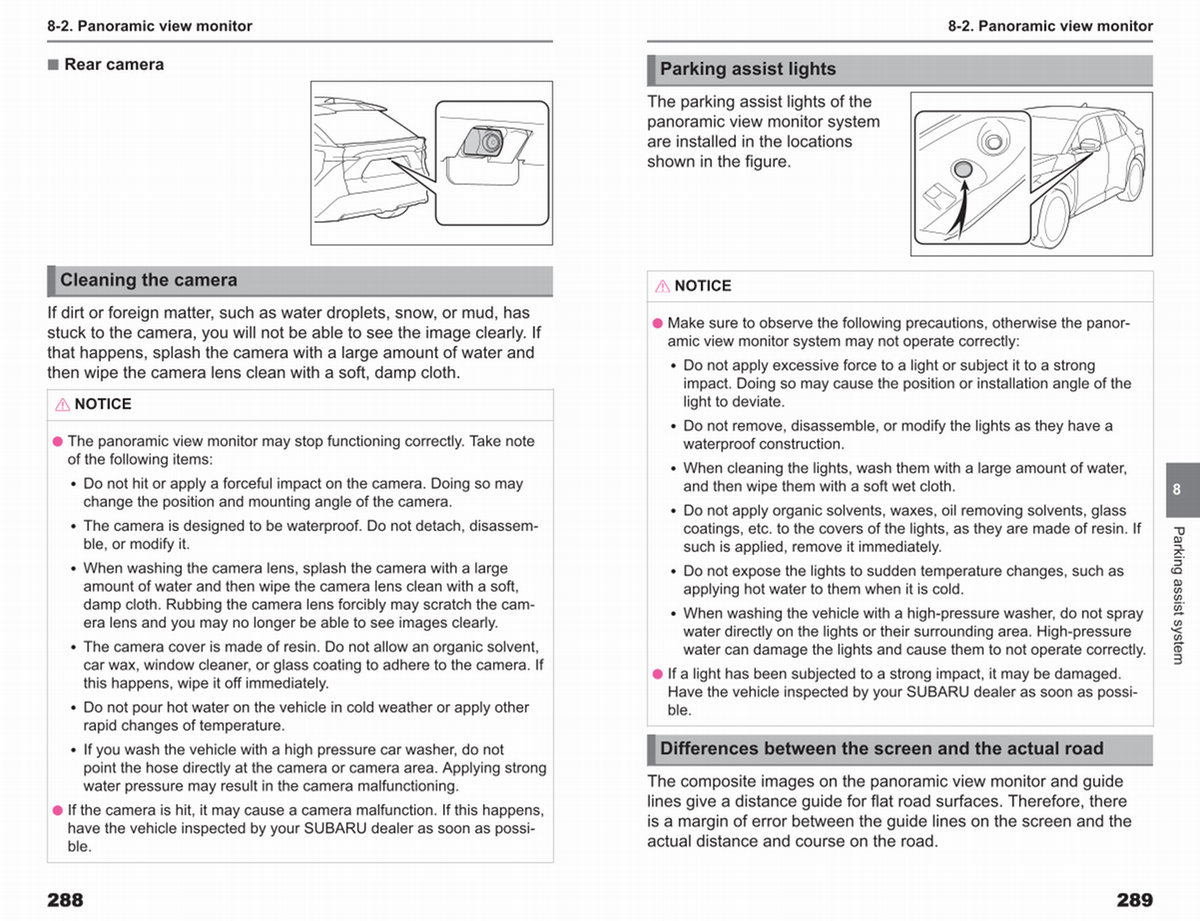

8-2. Panoramic view monitor
Parking assist lights
The parking assist lights of the panoramic view monitor system are installed in the locations shown in the figure.
NOTICE
● Make sure to observe the following precautions, otherwise the panoramic view monitor system may not operate correctly:
• Do not apply excessive force to a light or subject it to a strong impact. Doing so may cause the position or installation angle of the light to deviate.
• Do not remove, disassemble, or modify the lights as they have a waterproof construction.
• When cleaning the lights, wash them with a large amount of water, and then wipe them with a soft wet cloth.
• Do not apply organic solvents, waxes, oil removing solvents, glass coatings, etc. to the covers of the lights, as they are made of resin. If such is applied, remove it immediately.
• Do not expose the lights to sudden temperature changes, such as applying hot water to them when it is cold.
• When washing the vehicle with a high-pressure washer, do not spray water directly on the lights or their surrounding area. High-pressure water can damage the lights and cause them to not operate correctly.
● If a light has been subjected to a strong impact, it may be damaged. Have the vehicle inspected by your SUBARU dealer as soon as possible.
8
Parking assist system
Differences between the screen and the actual road
The composite images on the panoramic view monitor and guide lines give a distance guide for flat road surfaces. Therefore, there is a margin of error between the guide lines on the screen and the actual distance and course on the road.
289
