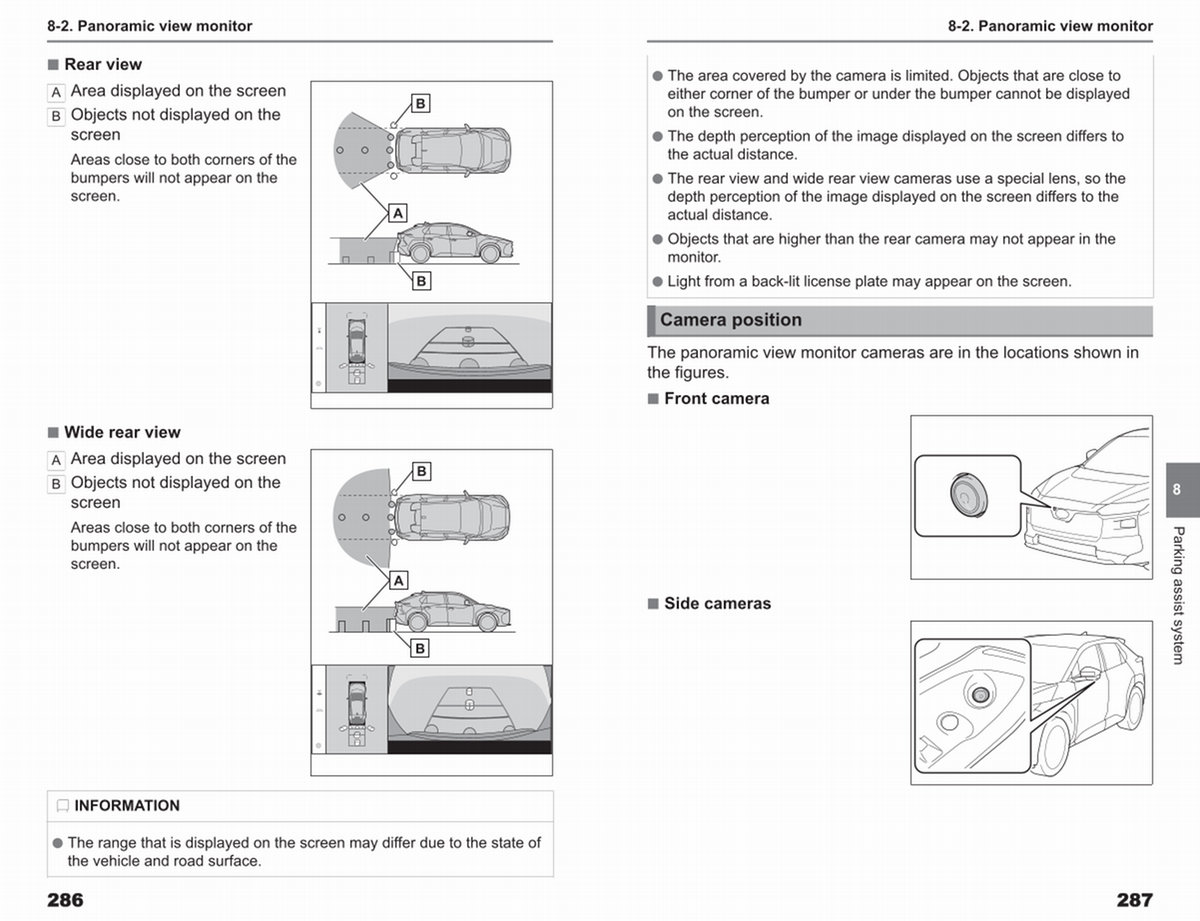

8-2. Panoramic view monitor
● The area covered by the camera is limited. Objects that are close to either corner of the bumper or under the bumper cannot be displayed on the screen.
● The depth perception of the image displayed on the screen differs to the actual distance.
● The rear view and wide rear view cameras use a special lens, so the depth perception of the image displayed on the screen differs to the actual distance.
● Objects that are higher than the rear camera may not appear in the monitor.
● Light from a back-lit license plate may appear on the screen.
Camera position
The panoramic view monitor cameras are in the locations shown in the figures.
■ Front camera
8
■ Side cameras
Parking assist system
287
