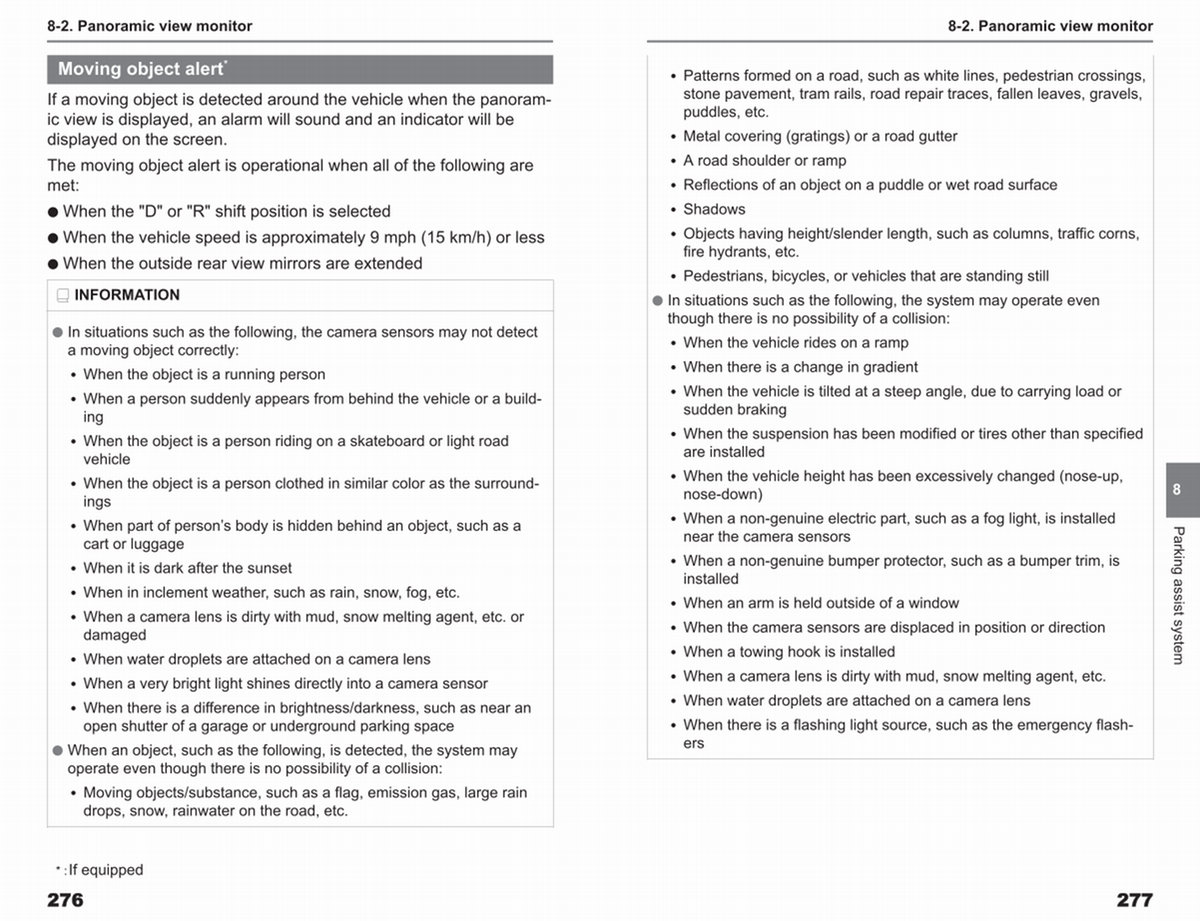

8-2. Panoramic view monitor
• Patterns formed on a road, such as white lines, pedestrian crossings, stone pavement, tram rails, road repair traces, fallen leaves, gravels, puddles, etc.
• Metal covering( gratings) or a road gutter
• A road shoulder or ramp
• Reflections of an object on a puddle or wet road surface
• Shadows
• Objects having height / slender length, such as columns, traffic corns, fire hydrants, etc.
• Pedestrians, bicycles, or vehicles that are standing still
● In situations such as the following, the system may operate even though there is no possibility of a collision:
• When the vehicle rides on a ramp
• When there is a change in gradient
• When the vehicle is tilted at a steep angle, due to carrying load or sudden braking
• When the suspension has been modified or tires other than specified are installed
• When the vehicle height has been excessively changed( nose-up, nose-down)
• When a non-genuine electric part, such as a fog light, is installed near the camera sensors
• When a non-genuine bumper protector, such as a bumper trim, is installed
• When an arm is held outside of a window
• When the camera sensors are displaced in position or direction
• When a towing hook is installed
• When a camera lens is dirty with mud, snow melting agent, etc.
• When water droplets are attached on a camera lens
• When there is a flashing light source, such as the emergency flashers
8
Parking assist system
277
