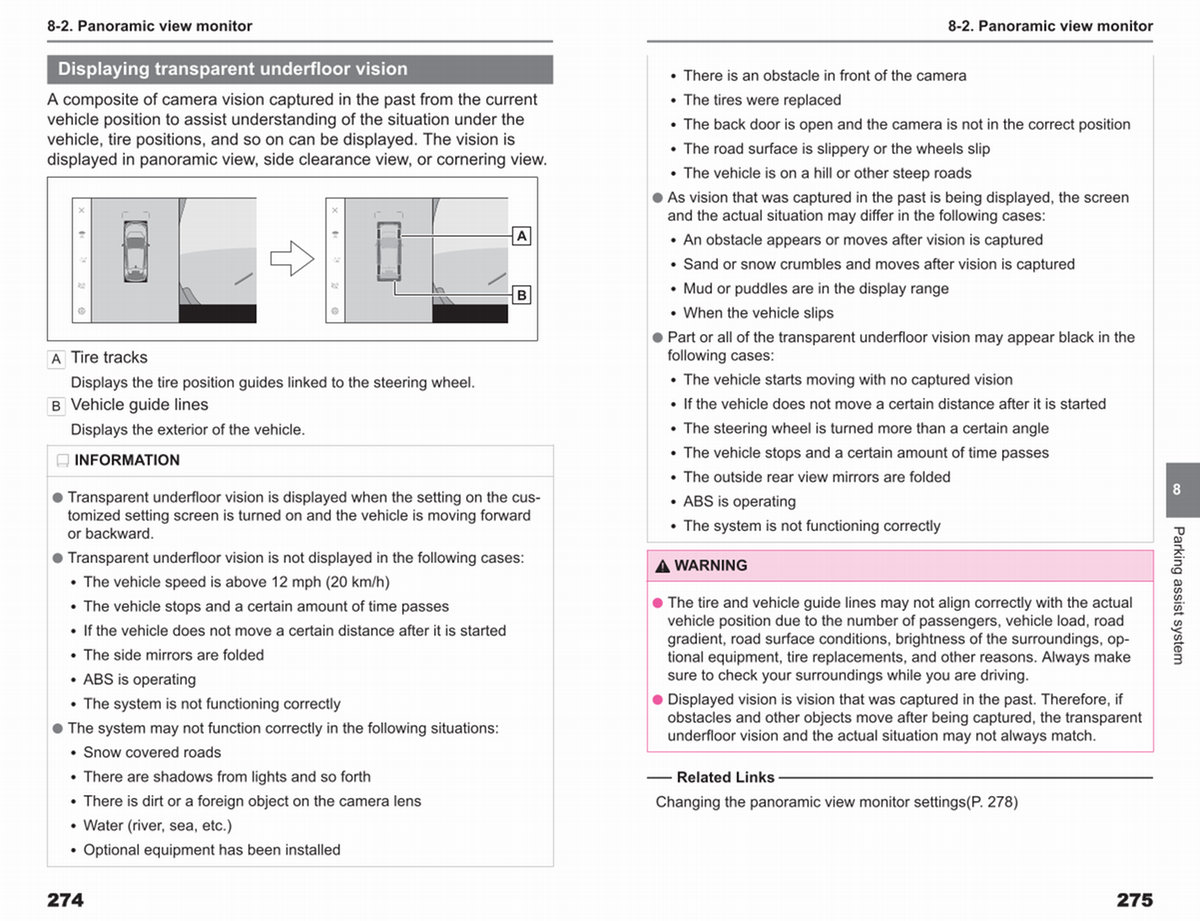

8-2. Panoramic view monitor
• There is an obstacle in front of the camera
• The tires were replaced
• The back door is open and the camera is not in the correct position
• The road surface is slippery or the wheels slip
• The vehicle is on a hill or other steep roads
● As vision that was captured in the past is being displayed, the screen and the actual situation may differ in the following cases:
• An obstacle appears or moves after vision is captured
• Sand or snow crumbles and moves after vision is captured
• Mud or puddles are in the display range
• When the vehicle slips
● Part or all of the transparent underfloor vision may appear black in the following cases:
• The vehicle starts moving with no captured vision
• If the vehicle does not move a certain distance after it is started
• The steering wheel is turned more than a certain angle
• The vehicle stops and a certain amount of time passes
• The outside rear view mirrors are folded
• ABS is operating
• The system is not functioning correctly
WARNING
● The tire and vehicle guide lines may not align correctly with the actual vehicle position due to the number of passengers, vehicle load, road gradient, road surface conditions, brightness of the surroundings, optional equipment, tire replacements, and other reasons. Always make sure to check your surroundings while you are driving.
● Displayed vision is vision that was captured in the past. Therefore, if obstacles and other objects move after being captured, the transparent underfloor vision and the actual situation may not always match.
8
Parking assist system
Related Links Changing the panoramic view monitor settings( P. 278)
275
