Display mode when the shift position is in " D " or " N "
You can check for nearby pedestrians, bicycles, and vehicles at intersections with poor visibility and T-junctions by displaying vision of your surroundings on the screen. This mode also provides support to check both sides of the vehicle for safety, avoid collisions on narrow roads, and pulling over to the side of the road.
1. Shift the shift position to " D " or " N ". 2. Press the camera switch.
● The mode changes every time you press the camera switch.
● If the cornering view mode is on and you turn the steering wheel more than 180 degrees from the straight position, the display will change from side clearance view & panoramic view to cornering view & panoramic view.

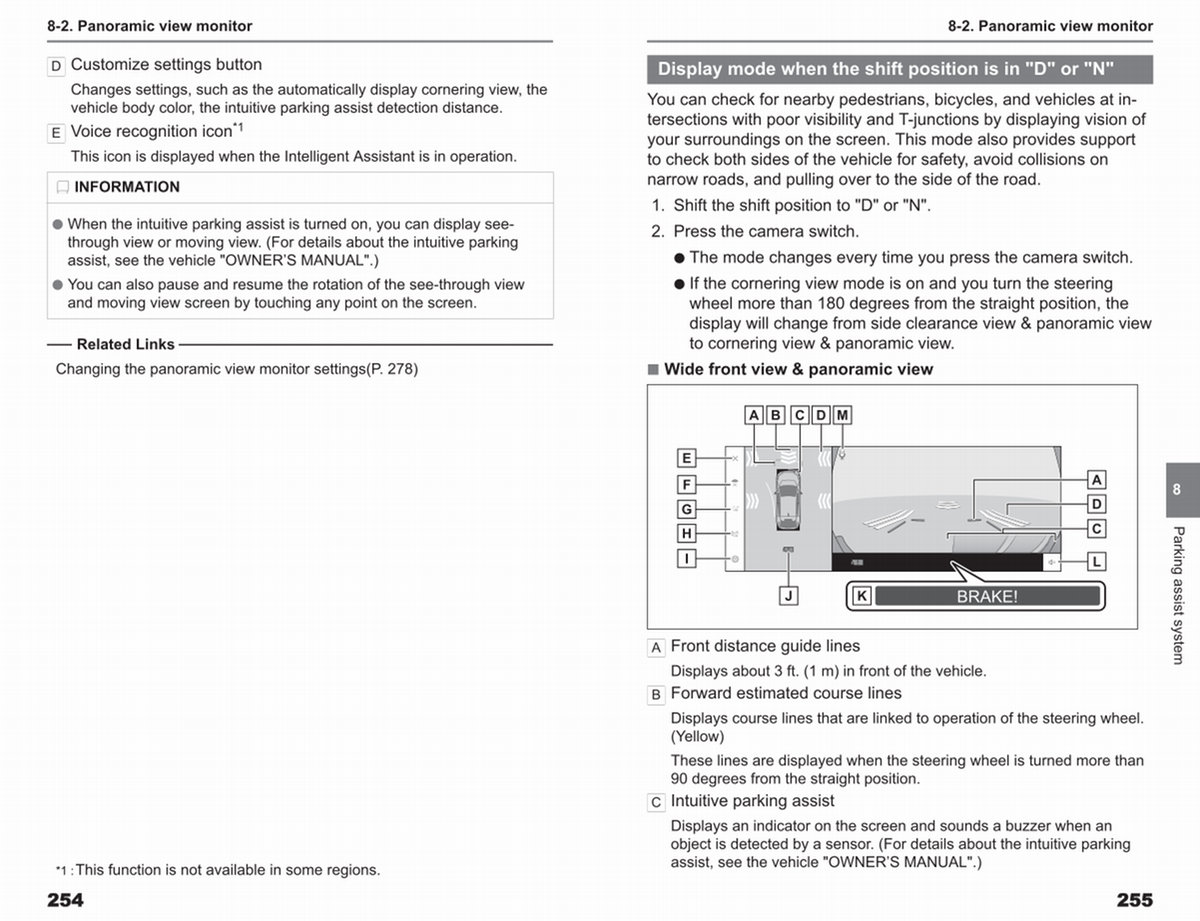

■ Wide front view & panoramic view
8-2. Panoramic view monitor
8
A Front distance guide lines Displays about 3 ft.( 1 m) in front of the vehicle.
B Forward estimated course lines
Displays course lines that are linked to operation of the steering wheel.( Yellow)
These lines are displayed when the steering wheel is turned more than 90 degrees from the straight position.
C Intuitive parking assist
Displays an indicator on the screen and sounds a buzzer when an object is detected by a sensor.( For details about the intuitive parking assist, see the vehicle " OWNER’ S MANUAL ".)
Parking assist system
255
