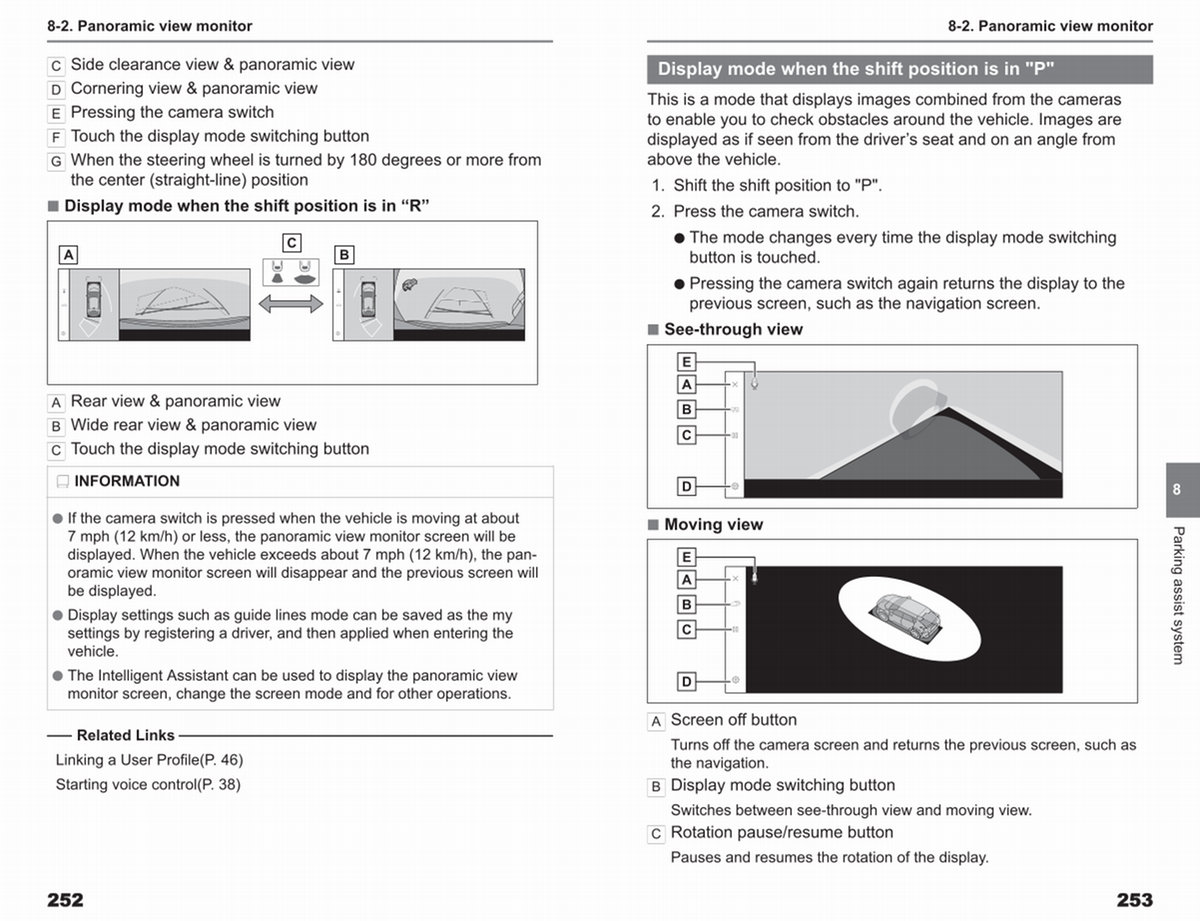

Display mode when the shift position is in " P "
This is a mode that displays images combined from the cameras to enable you to check obstacles around the vehicle. Images are displayed as if seen from the driver’ s seat and on an angle from above the vehicle.
1. Shift the shift position to " P ". 2. Press the camera switch.
● The mode changes every time the display mode switching button is touched.
● Pressing the camera switch again returns the display to the previous screen, such as the navigation screen.
■ See-through view
8-2. Panoramic view monitor
8
■ Moving view
Parking assist system
A Screen off button
Turns off the camera screen and returns the previous screen, such as the navigation.
B Display mode switching button Switches between see-through view and moving view.
C Rotation pause / resume button Pauses and resumes the rotation of the display.
253
