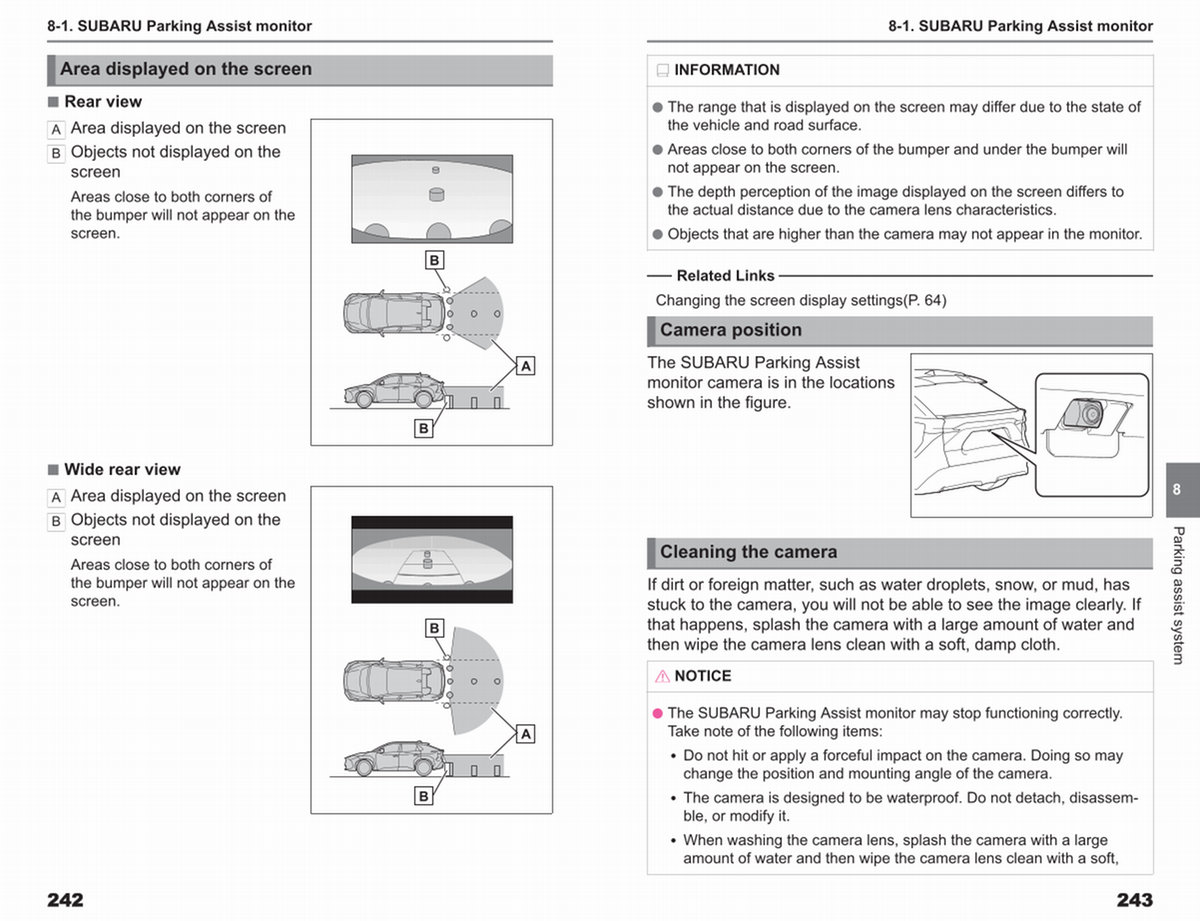

8-1. SUBARU Parking Assist monitor
INFORMATION
● The range that is displayed on the screen may differ due to the state of the vehicle and road surface.
● Areas close to both corners of the bumper and under the bumper will not appear on the screen.
● The depth perception of the image displayed on the screen differs to the actual distance due to the camera lens characteristics.
● Objects that are higher than the camera may not appear in the monitor.
Related Links Changing the screen display settings( P. 64)
Camera position
The SUBARU Parking Assist monitor camera is in the locations shown in the figure.
8
Cleaning the camera
If dirt or foreign matter, such as water droplets, snow, or mud, has stuck to the camera, you will not be able to see the image clearly. If that happens, splash the camera with a large amount of water and then wipe the camera lens clean with a soft, damp cloth.
NOTICE
Parking assist system
● The SUBARU Parking Assist monitor may stop functioning correctly. Take note of the following items:
• Do not hit or apply a forceful impact on the camera. Doing so may change the position and mounting angle of the camera.
• The camera is designed to be waterproof. Do not detach, disassemble, or modify it.
• When washing the camera lens, splash the camera with a large amount of water and then wipe the camera lens clean with a soft,
243
