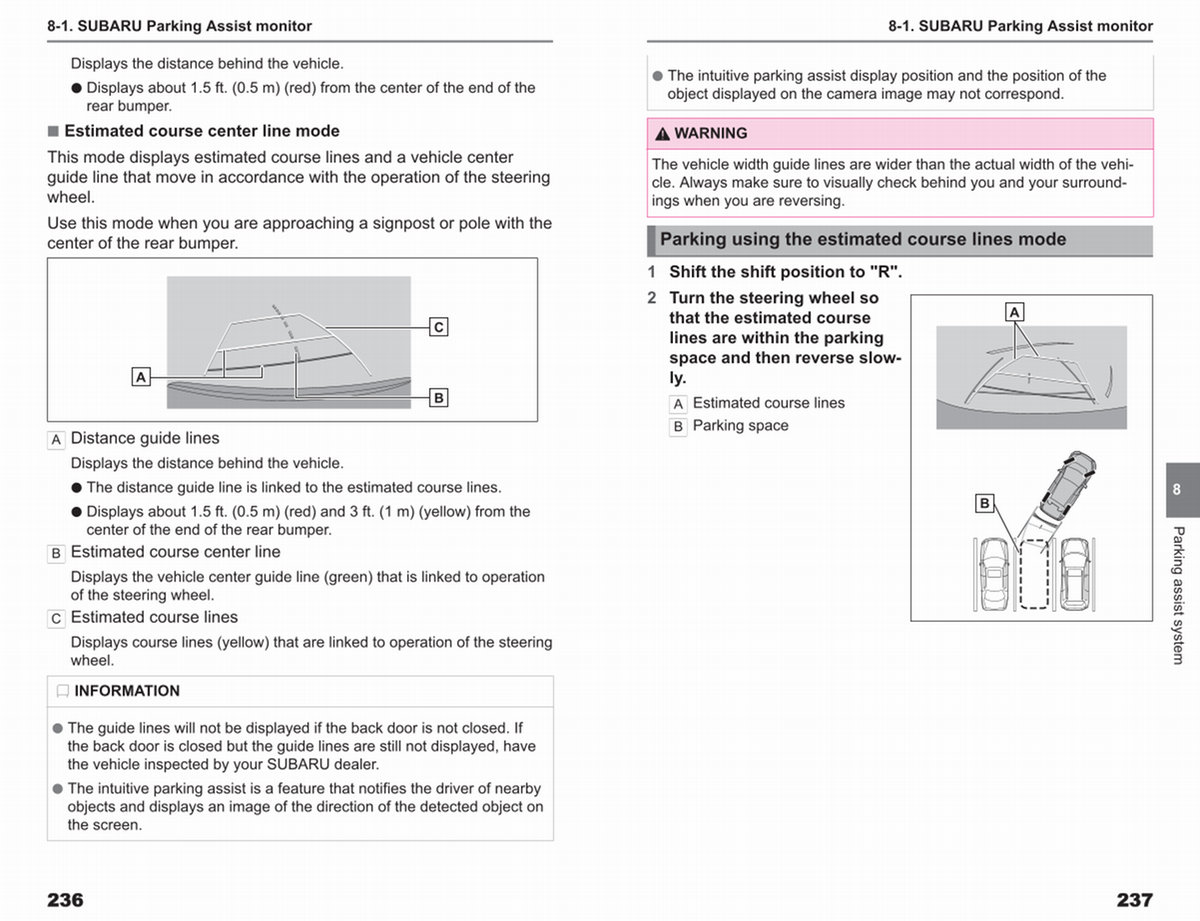

8-1. SUBARU Parking Assist monitor
Displays the distance behind the vehicle.
● Displays about 1.5 ft.( 0.5 m)( red) from the center of the end of the rear bumper.
■ Estimated course center line mode
This mode displays estimated course lines and a vehicle center guide line that move in accordance with the operation of the steering wheel.
Use this mode when you are approaching a signpost or pole with the center of the rear bumper.
A Distance guide lines Displays the distance behind the vehicle.
● The distance guide line is linked to the estimated course lines.
● Displays about 1.5 ft.( 0.5 m)( red) and 3 ft.( 1 m)( yellow) from the center of the end of the rear bumper.
B Estimated course center line
Displays the vehicle center guide line( green) that is linked to operation of the steering wheel.
C Estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
INFORMATION
● The guide lines will not be displayed if the back door is not closed. If the back door is closed but the guide lines are still not displayed, have the vehicle inspected by your SUBARU dealer.
● The intuitive parking assist is a feature that notifies the driver of nearby objects and displays an image of the direction of the detected object on the screen.
236
