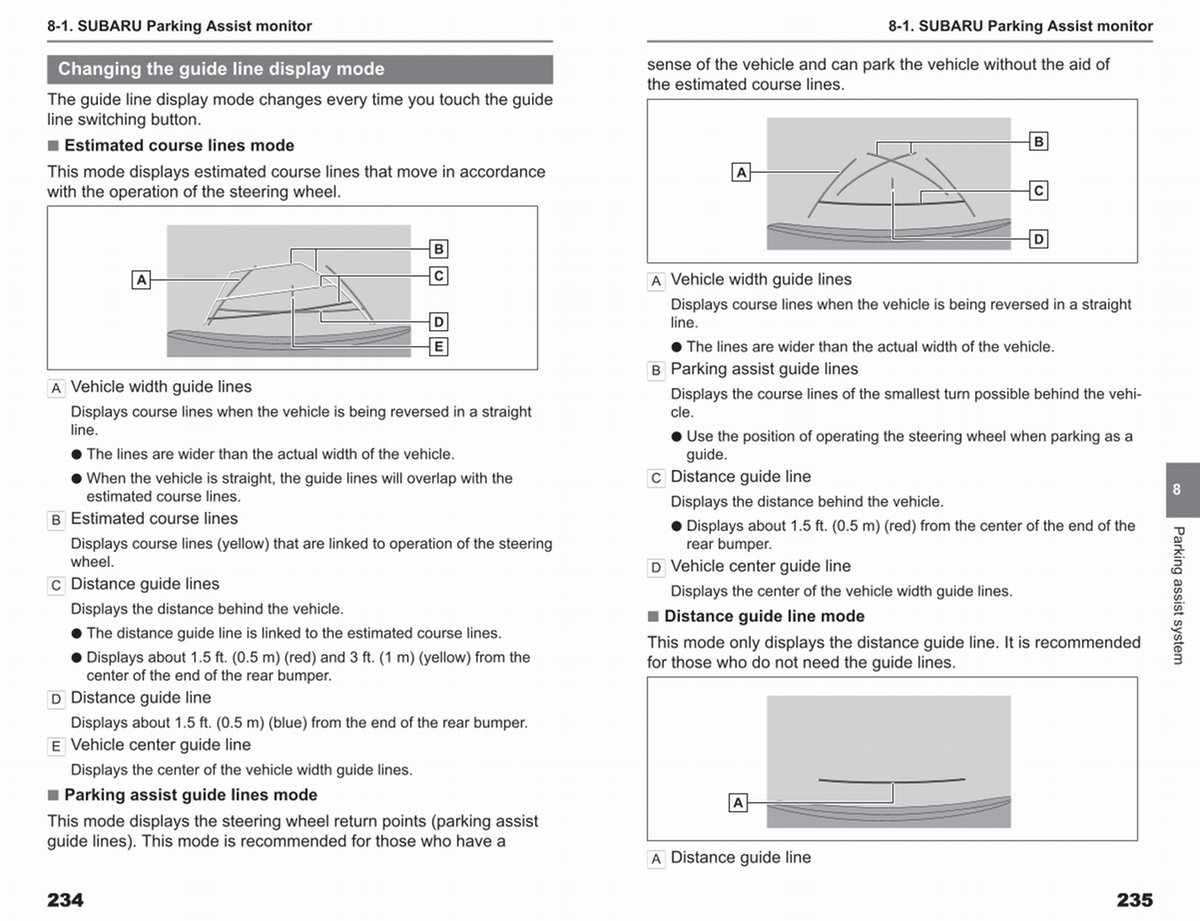

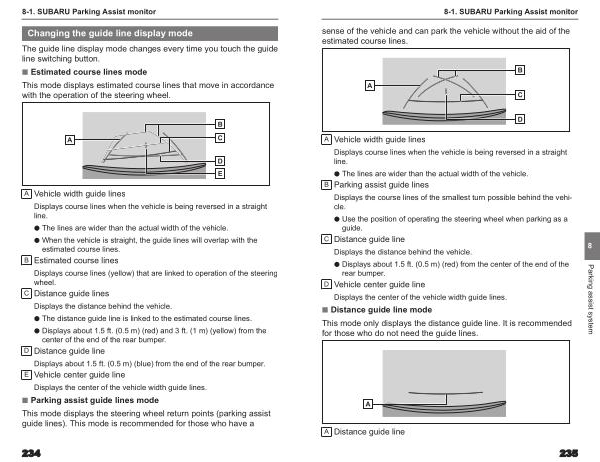

8-1. SUBARU Parking Assist monitor
Changing the guide line display mode
The guide line display mode changes every time you touch the guide line switching button.
■ Estimated course lines mode
This mode displays estimated course lines that move in accordance with the operation of the steering wheel.
A Vehicle width guide lines
Displays course lines when the vehicle is being reversed in a straight line.
● The lines are wider than the actual width of the vehicle.
● When the vehicle is straight, the guide lines will overlap with the estimated course lines.
B Estimated course lines
Displays course lines( yellow) that are linked to operation of the steering wheel.
C Distance guide lines Displays the distance behind the vehicle.
● The distance guide line is linked to the estimated course lines.
● Displays about 1.5 ft.( 0.5 m)( red) and 3 ft.( 1 m)( yellow) from the center of the end of the rear bumper.
D Distance guide line Displays about 1.5 ft.( 0.5 m)( blue) from the end of the rear bumper.
E Vehicle center guide line Displays the center of the vehicle width guide lines.
■ Parking assist guide lines mode
This mode displays the steering wheel return points( parking assist guide lines). This mode is recommended for those who have a
