2 . Charging operation 35

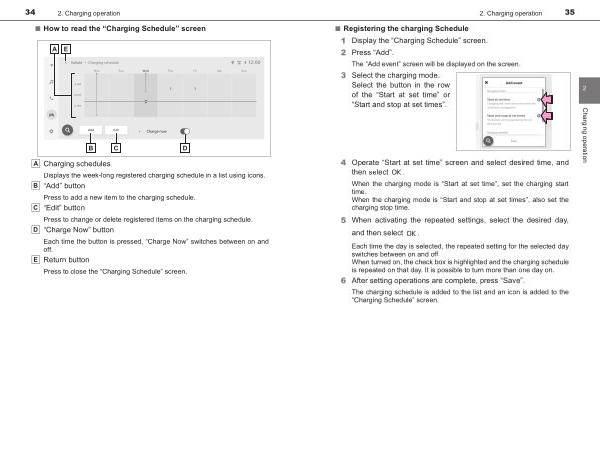

■ Registering the charging Schedule
1 Display the “ Charging Schedule ” screen .
2 Press “ Add ”. The “ Add event ” screen will be displayed on the screen .
3 Select the charging mode . Select the button in the row of the “ Start at set time ” or “ Start and stop at set times ”.
4
5
Operate “ Start at set time ” screen and select desired time , and then select .
When the charging mode is “ Start at set time ”, set the charging start time . When the charging mode is “ Start and stop at set times ”, also set the charging stop time .
When activating the repeated settings , select the desired day , and then select .
2
Charging operation
6
Each time the day is selected , the repeated setting for the selected day switches between on and off . When turned on , the check box is highlighted and the charging schedule is repeated on that day . It is possible to turn more than one day on .
After setting operations are complete , press “ Save ”.
The charging schedule is added to the list and an icon is added to the “ Charging Schedule ” screen .
