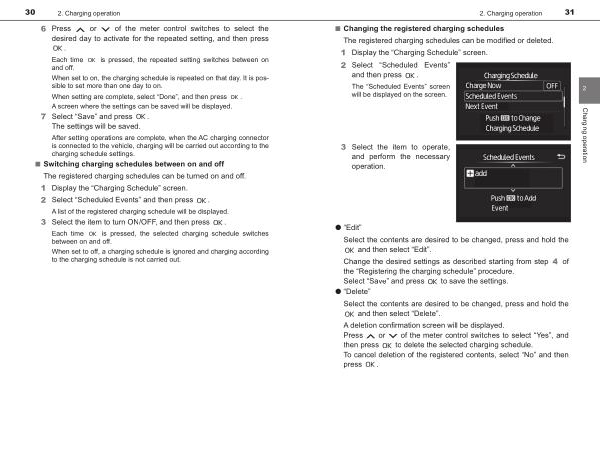

30 2 . Charging operation
6 Press or of the meter control switches to select the desired day to activate for the repeated setting , and then press
.
Each time is pressed , the repeated setting switches between on and off .
When set to on , the charging schedule is repeated on that day . It is possible to set more than one day to on .
When setting are complete , select “ Done ”, and then press . A screen where the settings can be saved will be displayed .
7 Select “ Save ” and press . The settings will be saved .
After setting operations are complete , when the AC charging connector is connected to the vehicle , charging will be carried out according to the charging schedule settings .
■ Switching charging schedules between on and off The registered charging schedules can be turned on and off .
1 Display the “ Charging Schedule ” screen .
2 Select “ Scheduled Events ” and then press . A list of the registered charging schedule will be displayed .
3 Select the item to turn ON / OFF , and then press .
Each time is pressed , the selected charging schedule switches between on and off .
When set to off , a charging schedule is ignored and charging according to the charging schedule is not carried out .
