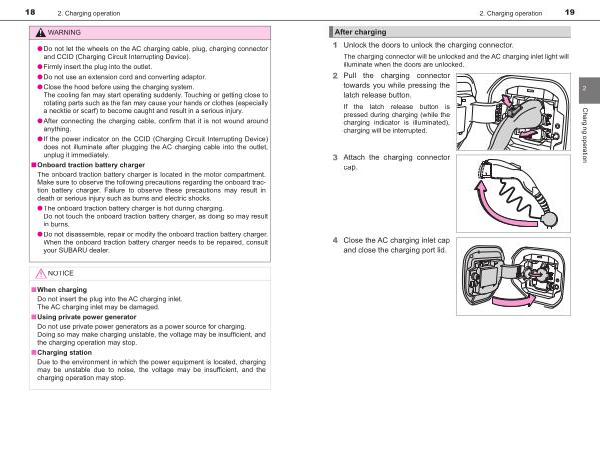

2 . Charging operation 19
After charging 1
2
3
Unlock the doors to unlock the charging connector .
The charging connector will be unlocked and the AC charging inlet light will illuminate when the doors are unlocked .
Pull the charging connector towards you while pressing the latch release button .
If the latch release button is pressed during charging ( while the charging indicator is illuminated ), charging will be interrupted .
Attach the charging connector cap .
2
Charging operation
4
Close the AC charging inlet cap and close the charging port lid .
