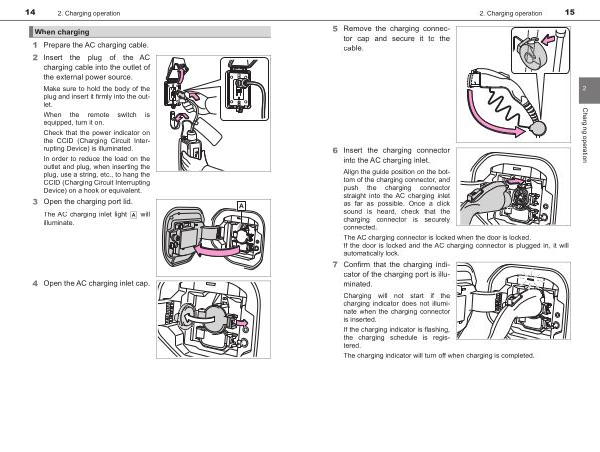

14 2 . Charging operation
When charging
1 Prepare the AC charging cable .
2 Insert the plug of the AC charging cable into the outlet of the external power source .
Make sure to hold the body of the plug and insert it firmly into the outlet .
When the remote switch is equipped , turn it on .
Check that the power indicator on the CCID ( Charging Circuit Interrupting Device ) is illuminated .
In order to reduce the load on the outlet and plug , when inserting the plug , use a string , etc ., to hang the CCID ( Charging Circuit Interrupting Device ) on a hook or equivalent .
3 Open the charging port lid .
The AC charging inlet light illuminate .
A will
4 Open the AC charging inlet cap .
