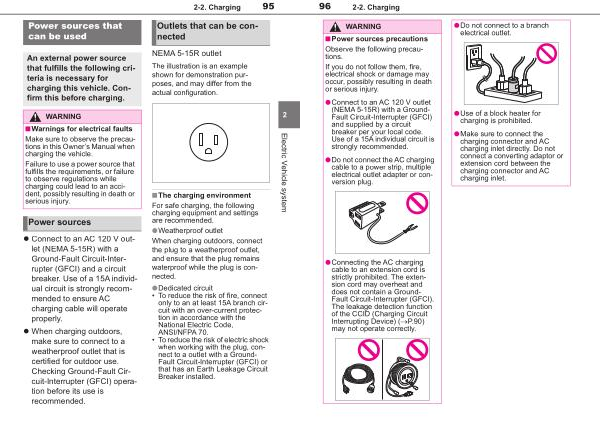

2-2 . Charging
95
Power sources that can be used
An external power source that fulfills the following criteria is necessary for charging this vehicle . Confirm this before charging .
Outlets that can be connected
NEMA 5-15R outlet
The illustration is an example shown for demonstration purposes , and may differ from the actual configuration .
WARNING
■ Warnings for electrical faults
Make sure to observe the precautions in this Owner ’ s Manual when
charging the vehicle .
Failure to use a power source that fulfills the requirements , or failure to observe regulations while charging could lead to an accident , possibly resulting in death or serious injury .
Power sources
• Connect to an AC 120 V outlet ( NEMA 5-15R ) with a Ground-Fault Circuit-Interrupter ( GFCI ) and a circuit breaker . Use of a 15A individual circuit is strongly recommended to ensure AC charging cable will operate properly .
• When charging outdoors , make sure to connect to a weatherproof outlet that is certified for outdoor use . Checking Ground-Fault Circuit-Interrupter ( GFCI ) operation before its use is recommended .
■ The charging environment
For safe charging , the following charging equipment and settings are recommended .
● Weatherproof outlet When charging outdoors , connect the plug to a weatherproof outlet , and ensure that the plug remains waterproof while the plug is connected .
● Dedicated circuit
• To reduce the risk of fire , connect only to an at least 15A branch circuit with an over-current protection in accordance with the National Electric Code ,
ANSI / NFPA 70 .
• To reduce the risk of electric shock when working with the plug , connect to a outlet with a Ground- Fault Circuit-Interrupter ( GFCI ) or that has an Earth Leakage Circuit Breaker installed .
2
Electric Vehicle system
