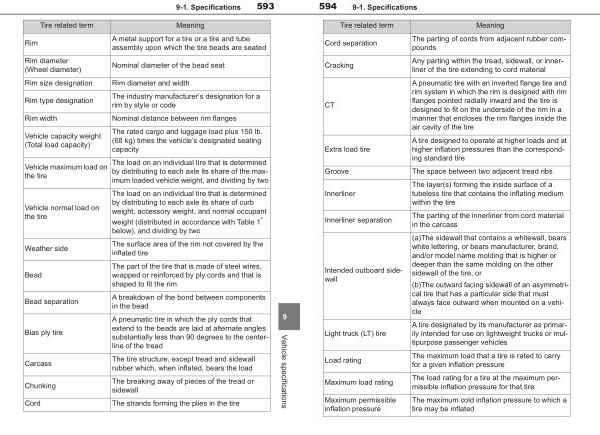

594 9-1 . Specifications
Cord separation
Cracking
CT
Extra load tire
Groove
Tire related term
Innerliner
Innerliner separation
Intended outboard sidewall
Light truck ( LT ) tire
Load rating
Maximum load rating
Maximum permissible inflation pressure
Meaning
The parting of cords from adjacent rubber compounds
Any parting within the tread , sidewall , or innerliner of the tire extending to cord material
A pneumatic tire with an inverted flange tire and rim system in which the rim is designed with rim flanges pointed radially inward and the tire is designed to fit on the underside of the rim in a manner that encloses the rim flanges inside the air cavity of the tire
A tire designed to operate at higher loads and at higher inflation pressures than the corresponding standard tire
The space between two adjacent tread ribs
The layer ( s ) forming the inside surface of a tubeless tire that contains the inflating medium within the tire
The parting of the innerliner from cord material in the carcass
( a ) The sidewall that contains a whitewall , bears white lettering , or bears manufacturer , brand , and / or model name molding that is higher or deeper than the same molding on the other sidewall of the tire , or
( b ) The outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle
A tire designated by its manufacturer as primarily intended for use on lightweight trucks or multipurpose passenger vehicles
The maximum load that a tire is rated to carry for a given inflation pressure
The load rating for a tire at the maximum permissible inflation pressure for that tire
The maximum cold inflation pressure to which a tire may be inflated
