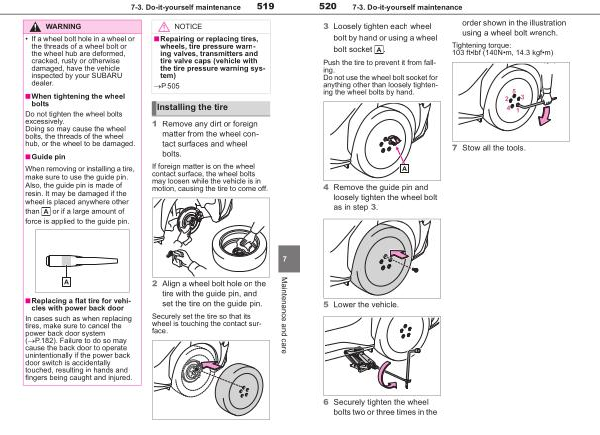

7-3 . Do-it-yourself maintenance
519
WARNING
• If a wheel bolt hole in a wheel or the threads of a wheel bolt or the wheel hub are deformed , cracked , rusty or otherwise
damaged , have the vehicle inspected by your SUBARU dealer .
■ When tightening the wheel bolts
Do not tighten the wheel bolts excessively . Doing so may cause the wheel
bolts , the threads of the wheel hub , or the wheel to be damaged .
■ Guide pin
When removing or installing a tire , make sure to use the guide pin . Also , the guide pin is made of resin . It may be damaged if the wheel is placed anywhere other
than or if a large amount of force is applied to the guide pin .
NOTICE
■ Repairing or replacing tires , wheels , tire pressure warning valves , transmitters and tire valve caps ( vehicle with
the tire pressure warning system )
�P . 505
Installing the tire
1 Remove any dirt or foreign matter from the wheel contact surfaces and wheel bolts .
If foreign matter is on the wheel contact surface , the wheel bolts may loosen while the vehicle is in motion , causing the tire to come off .
7
■ Replacing a flat tire for vehicles with power back door
In cases such as when replacing tires , make sure to cancel the
power back door system ( �P . 182 ). Failure to do so may cause the back door to operate
unintentionally if the power back door switch is accidentally touched , resulting in hands and
fingers being caught and injured .
2 Align a wheel bolt hole on the tire with the guide pin , and set the tire on the guide pin .
Securely set the tire so that its wheel is touching the contact surface .
Maintenance and care
