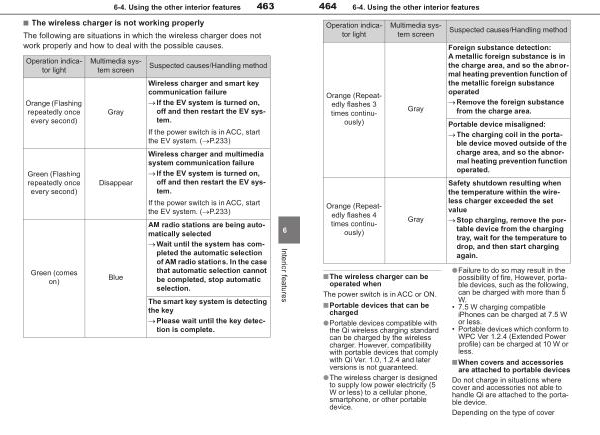

464 6-4 . Using the other interior features
Operation indicator light
Orange ( Repeatedly flashes 3 times continuously )
Orange ( Repeatedly flashes 4 times continuously )
Multimedia system screen
Gray
Gray
Suspected causes / Handling method
Foreign substance detection : A metallic foreign substance is in the charge area , and so the abnormal heating prevention function of the metallic foreign substance operated
� Remove the foreign substance from the charge area .
Portable device misaligned :
� The charging coil in the portable device moved outside of the charge area , and so the abnormal heating prevention function operated .
Safety shutdown resulting when the temperature within the wireless charger exceeded the set value
� Stop charging , remove the portable device from the charging tray , wait for the temperature to drop , and then start charging again .
■ The wireless charger can be operated when
The power switch is in ACC or ON .
■ Portable devices that can be charged
●Portable devices compatible with the Qi wireless charging standard can be charged by the wireless charger . However , compatibility with portable devices that comply with Qi Ver . 1.0 , 1.2.4 and later versions is not guaranteed .
●The wireless charger is designed to supply low power electricity ( 5 W or less ) to a cellular phone , smartphone , or other portable
device .
●Failure to do so may result in the possibility of fire , However , portable devices , such as the following ,
can be charged with more than 5 W .
• 7.5 W charging compatible
iPhones can be charged at 7.5 W or less .
• Portable devices which conform to
WPC Ver 1.2.4 ( Extended Power profile ) can be charged at 10 W or less .
■ When covers and accessories are attached to portable devices
Do not charge in situations where cover and accessories not able to handle Qi are attached to the portable device .
Depending on the type of cover
