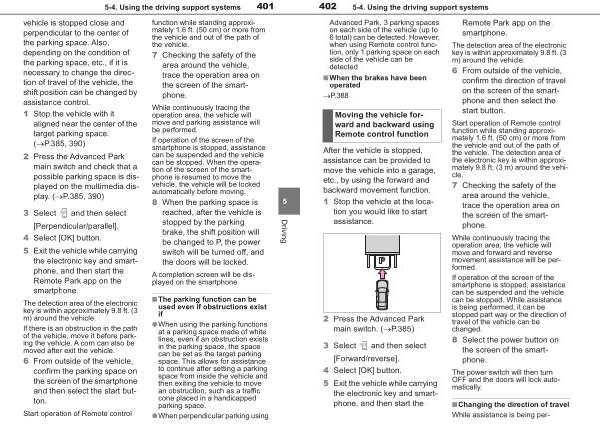

402 5-4 . Using the driving support systems Advanced Park , 3 parking spaces on each side of the vehicle ( up to 6 total ) can be detected . However , when using Remote control function , only 1 parking space on each side of the vehicle can be detected
■ When the brakes have been operated
�P . 388
Moving the vehicle forward and backward using Remote control function
After the vehicle is stopped , assistance can be provided to move the vehicle into a garage , etc ., by using the forward and backward movement function . 1 Stop the vehicle at the location you would like to start assistance .
2 Press the Advanced Park main switch . ( �P . 385 )
3 Select and then select
[ Forward / reverse ]. 4 Select [ OK ] button .
5 Exit the vehicle while carrying the electronic key and smartphone , and then start the
Remote Park app on the smartphone .
The detection area of the electronic key is within approximately 9.8 ft . ( 3 m ) around the vehicle .
6 From outside of the vehicle , confirm the direction of travel on the screen of the smartphone and then select the start button .
Start operation of Remote control function while standing approximately 1.6 ft . ( 50 cm ) or more from the vehicle and out of the path of
the vehicle . The detection area of the electronic key is within approximately 9.8 ft . ( 3 m ) around the vehicle .
7 Checking the safety of the area around the vehicle , trace the operation area on the screen of the smartphone .
While continuously tracing the operation area , the vehicle will
move and forward and reverse movement assistance will be performed .
If operation of the screen of the smartphone is stopped , assistance
can be suspended and the vehicle can be stopped . While assistance is being performed , it can be
stopped part way or the direction of travel of the vehicle can be changed .
8 Select the power button on the screen of the smartphone .
The power switch will then turn OFF and the doors will lock automatically .
■ Changing the direction of travel While assistance is being per-
