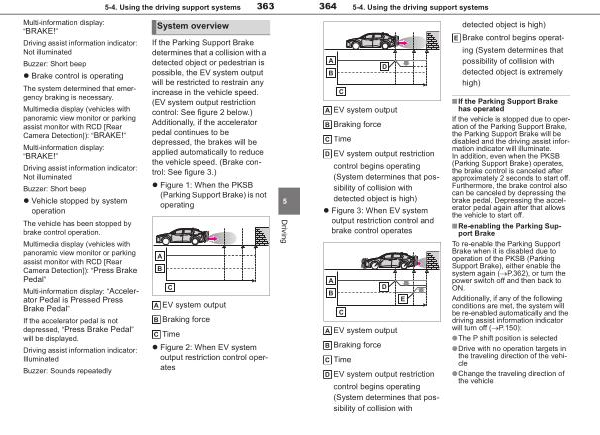

5-4 . Using the driving support systems
363
Multi-information display : “ BRAKE !”
Driving assist information indicator : Not illuminated
Buzzer : Short beep
• Brake control is operating
The system determined that emergency braking is necessary .
Multimedia display ( vehicles with panoramic view monitor or parking assist monitor with RCD [ Rear Camera Detection ]): “ BRAKE !”
Multi-information display : “ BRAKE !”
Driving assist information indicator : Not illuminated
Buzzer : Short beep
• Vehicle stopped by system operation
The vehicle has been stopped by brake control operation .
Multimedia display ( vehicles with panoramic view monitor or parking assist monitor with RCD [ Rear Camera Detection ]): “ Press Brake
Pedal ”
Multi-information display : “ Accelerator Pedal is Pressed Press Brake Pedal ”
If the accelerator pedal is not depressed , “ Press Brake Pedal ” will be displayed .
Driving assist information indicator : Illuminated
Buzzer : Sounds repeatedly
System overview
If the Parking Support Brake determines that a collision with a detected object or pedestrian is possible , the EV system output will be restricted to restrain any increase in the vehicle speed . ( EV system output restriction control : See figure 2 below .) Additionally , if the accelerator pedal continues to be depressed , the brakes will be applied automatically to reduce the vehicle speed . ( Brake control : See figure 3 .)
• Figure 1 : When the PKSB ( Parking Support Brake ) is not operating
EV system output Braking force Time
• Figure 2 : When EV system output restriction control operates
