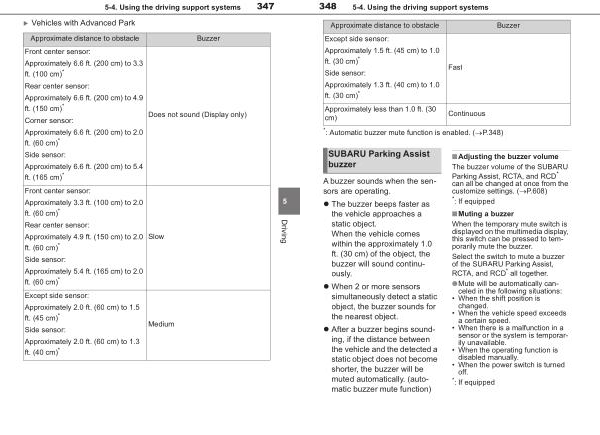

348 5-4 . Using the driving support systems
Approximate distance to obstacle Except side sensor : Approximately 1.5 ft . ( 45 cm ) to 1.0 ft . ( 30 cm ) * Side sensor : Approximately 1.3 ft . ( 40 cm ) to 1.0 ft . ( 30 cm ) *
Approximately less than 1.0 ft . ( 30 cm )
Fast
Continuous
Buzzer
* : Automatic buzzer mute function is enabled . ( �P . 348 )
SUBARU Parking Assist buzzer
A buzzer sounds when the sensors are operating .
• The buzzer beeps faster as the vehicle approaches a static object . When the vehicle comes within the approximately 1.0 ft . ( 30 cm ) of the object , the buzzer will sound continuously .
• When 2 or more sensors simultaneously detect a static object , the buzzer sounds for the nearest object .
• After a buzzer begins sounding , if the distance between the vehicle and the detected a static object does not become shorter , the buzzer will be muted automatically . ( automatic buzzer mute function )
■ Adjusting the buzzer volume The buzzer volume of the SUBARU
Parking Assist , RCTA , and RCD *
can all be changed at once from the customize settings . ( �P . 608 ) * : If equipped
■ Muting a buzzer
When the temporary mute switch is displayed on the multimedia display ,
this switch can be pressed to temporarily mute the buzzer .
Select the switch to mute a buzzer of the SUBARU Parking Assist ,
RCTA , and RCD * all together .
● Mute will be automatically canceled in the following situations :
• When the shift position is changed .
• When the vehicle speed exceeds a certain speed .
• When there is a malfunction in a
sensor or the system is temporarily unavailable .
• When the operating function is disabled manually .
• When the power switch is turned off . * : If equipped
