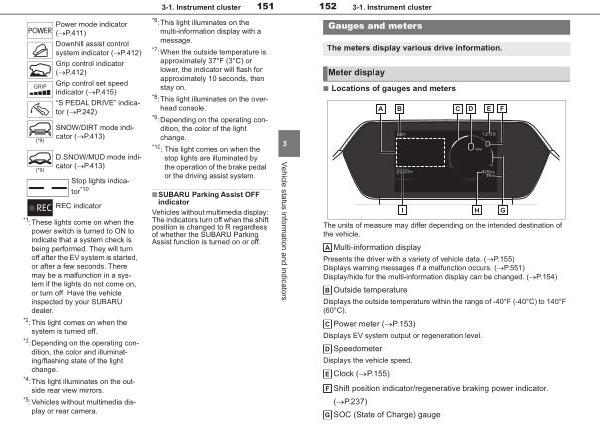

3-1 . Instrument cluster
151
(* 9 )
(* 9 )
Power mode indicator ( �P . 411 )
Downhill assist control system indicator ( �P . 412 )
Grip control indicator ( �P . 412 )
Grip control set speed indicator ( �P . 415 )
“ S PEDAL DRIVE ” indicator ( �P . 242 )
SNOW / DIRT mode indicator ( �P . 413 )
D . SNOW / MUD mode indicator ( �P . 413 )
Stop lights indicator * 10
REC indicator
* 1 : These lights come on when the
power switch is turned to ON to indicate that a system check is being performed . They will turn off after the EV system is started , or after a few seconds . There may be a malfunction in a system if the lights do not come on , or turn off . Have the vehicle inspected by your SUBARU dealer .
* 2 : This light comes on when the system is turned off .
* 3 : Depending on the operating condition , the color and illuminating / flashing state of the light change .
* 4 : This light illuminates on the outside rear view mirrors .
* 5 : Vehicles without multimedia display or rear camera .
* 6 : This light illuminates on the
multi-information display with a message .
* 7 : When the outside temperature is
approximately 37 ° F ( 3 ° C ) or lower , the indicator will flash for approximately 10 seconds , then stay on .
* 8 : This light illuminates on the overhead console .
* 9 : Depending on the operating condition , the color of the light change .
* 10 : This light comes on when the
stop lights are illuminated by the operation of the brake pedal or the driving assist system .
■ SUBARU Parking Assist OFF indicator
Vehicles without multimedia display : The indicators turn off when the shift position is changed to R regardless
of whether the SUBARU Parking Assist function is turned on or off .
3
Vehicle status information and indicators
