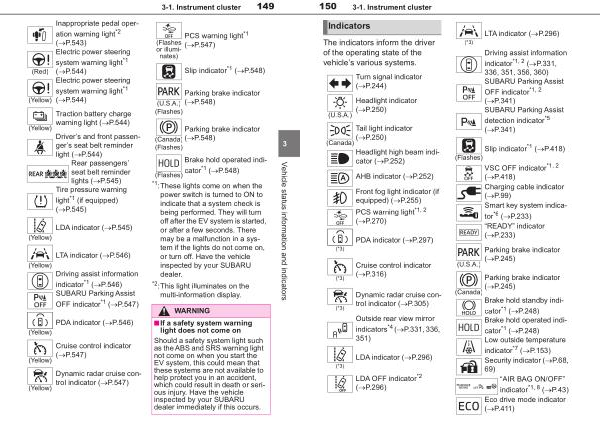

3-1 . Instrument cluster
149
( Red )
( Yellow )
( Yellow )
( Yellow )
Inappropriate pedal operation warning light * 2 ( �P . 543 ) Electric power steering
system warning light * 1 ( �P . 544 ) Electric power steering
system warning light * 1 ( �P . 544 )
Traction battery charge warning light ( �P . 544 )
Driver ’ s and front passenger ’ s seat belt reminder light ( �P . 544 ) Rear passengers ’ seat belt reminder lights ( �P . 545 ) Tire pressure warning
light * 1 ( if equipped ) ( �P . 545 )
LDA indicator ( �P . 545 )
LTA indicator ( �P . 546 )
( Yellow ) Driving assist information
indicator * 1 ( �P . 546 ) SUBARU Parking Assist
OFF indicator * 1 ( �P . 547 )
( Yellow )
( Yellow )
( Yellow )
PDA indicator ( �P . 546 )
Cruise control indicator ( �P . 547 )
Dynamic radar cruise control indicator ( �P . 547 )
PCS warning light * 1 ( Flashes ( �P . 547 ) or illuminates )
Slip indicator * 1 ( �P . 548 )
Parking brake indicator
( U . S . A .) ( �P . 548 ) ( Flashes )
Parking brake indicator
( Canada ) ( �P . 548 ) ( Flashes )
Brake hold operated indicator * 1 ( �P . 548 ) ( Flashes ) * 1 : These lights come on when the
power switch is turned to ON to indicate that a system check is being performed . They will turn off after the EV system is started , or after a few seconds . There may be a malfunction in a system if the lights do not come on , or turn off . Have the vehicle inspected by your SUBARU dealer .
* 2 : This light illuminates on the multi-information display .
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the EV system , this could mean that these systems are not available to help protect you in an accident , which could result in death or serious injury . Have the vehicle inspected by your SUBARU dealer immediately if this occurs .
3
Vehicle status information and indicators
