112 2-2 . Charging

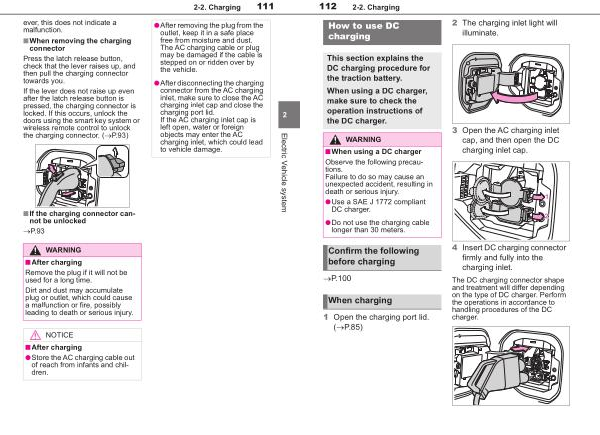

How to use DC charging
This section explains the DC charging procedure for the traction battery .
When using a DC charger , make sure to check the operation instructions of the DC charger .
WARNING
■ When using a DC charger
Observe the following precautions . Failure to do so may cause an unexpected accident , resulting in death or serious injury .
●Use a SAE J 1772 compliant DC charger .
●Do not use the charging cable longer than 30 meters .
Confirm the following before charging
�P . 100
When charging
1 Open the charging port lid . ( �P . 85 )
2 The charging inlet light will illuminate .
3 Open the AC charging inlet cap , and then open the DC charging inlet cap .
4 Insert DC charging connector firmly and fully into the charging inlet .
The DC charging connector shape and treatment will differ depending on the type of DC charger . Perform
the operations in accordance to handling procedures of the DC charger .
