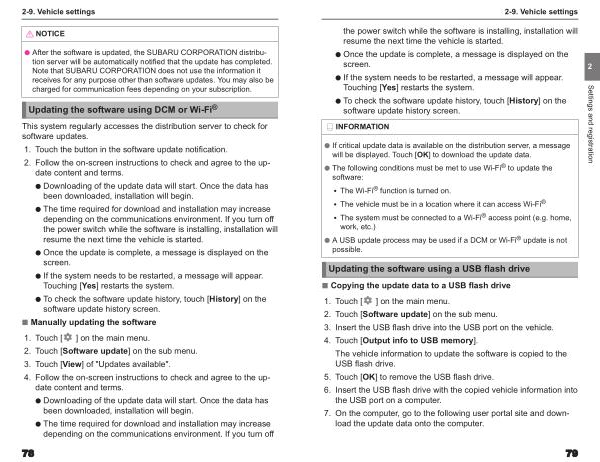

2-9 . Vehicle settings
the power switch while the software is installing , installation will resume the next time the vehicle is started .
● Once the update is complete , a message is displayed on the screen .
● If the system needs to be restarted , a message will appear . Touching [ Yes ] restarts the system .
● To check the software update history , touch [ History ] on the software update history screen .
INFORMATION
● If critical update data is available on the distribution server , a message will be displayed . Touch [ OK ] to download the update data .
● The following conditions must be met to use Wi-Fi ® to update the software :
• The Wi-Fi ® function is turned on .
• The vehicle must be in a location where it can access Wi-Fi ®
• The system must be connected to a Wi-Fi ® access point ( e . g . home , work , etc .)
● A USB update process may be used if a DCM or Wi-Fi ® update is not possible .
2
Settings and registration
Updating the software using a USB flash drive
■ Copying the update data to a USB flash drive
1 . Touch [ ] on the main menu . 2 . Touch [ Software update ] on the sub menu . 3 . Insert the USB flash drive into the USB port on the vehicle . 4 . Touch [ Output info to USB memory ].
The vehicle information to update the software is copied to the USB flash drive .
5 . Touch [ OK ] to remove the USB flash drive .
6 . Insert the USB flash drive with the copied vehicle information into the USB port on a computer .
7 . On the computer , go to the following user portal site and download the update data onto the computer .
79
