8-2 . Panoramic view monitor

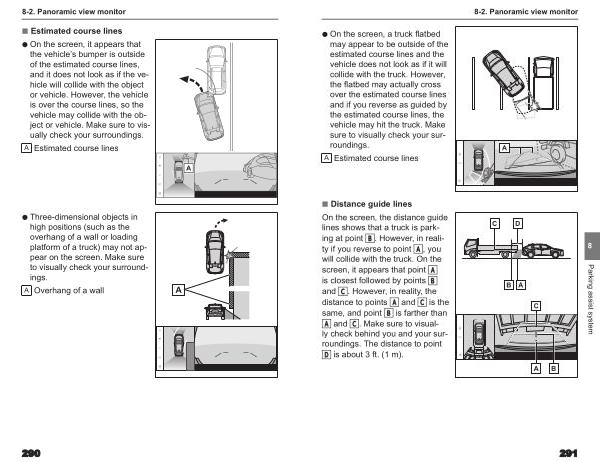

● On the screen , a truck flatbed may appear to be outside of the estimated course lines and the vehicle does not look as if it will collide with the truck . However , the flatbed may actually cross over the estimated course lines and if you reverse as guided by the estimated course lines , the vehicle may hit the truck . Make sure to visually check your surroundings .
A Estimated course lines
■ Distance guide lines
On the screen , the distance guide lines shows that a truck is parking at point . However , in reality if you reverse to point , you will collide with the truck . On the screen , it appears that point is closest followed by points and . However , in reality , the distance to points and is the same , and point is farther than and . Make sure to visually check behind you and your surroundings . The distance to point is about 3 ft . ( 1 m ).
8
Parking assist system
291
