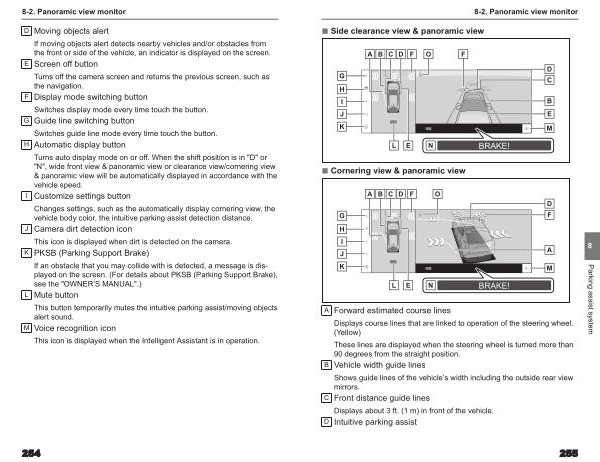

■ Side clearance view & panoramic view
8-2 . Panoramic view monitor
■ Cornering view & panoramic view
8
A Forward estimated course lines
Displays course lines that are linked to operation of the steering wheel . ( Yellow )
These lines are displayed when the steering wheel is turned more than 90 degrees from the straight position .
B Vehicle width guide lines
Shows guide lines of the vehicle ’ s width including the outside rear view mirrors .
C Front distance guide lines Displays about 3 ft . ( 1 m ) in front of the vehicle .
D Intuitive parking assist
Parking assist system
255
