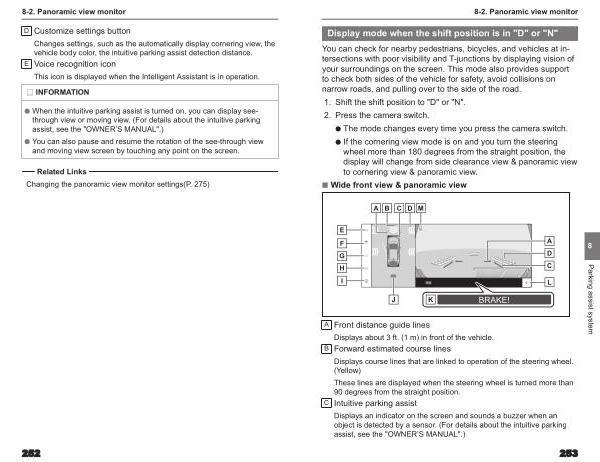

Display mode when the shift position is in " D " or " N "
You can check for nearby pedestrians , bicycles , and vehicles at intersections with poor visibility and T-junctions by displaying vision of your surroundings on the screen . This mode also provides support to check both sides of the vehicle for safety , avoid collisions on narrow roads , and pulling over to the side of the road .
1 . Shift the shift position to " D " or " N ". 2 . Press the camera switch .
● The mode changes every time you press the camera switch .
● If the cornering view mode is on and you turn the steering wheel more than 180 degrees from the straight position , the display will change from side clearance view & panoramic view to cornering view & panoramic view .
■ Wide front view & panoramic view
8-2 . Panoramic view monitor
8
A Front distance guide lines Displays about 3 ft . ( 1 m ) in front of the vehicle .
B Forward estimated course lines
Displays course lines that are linked to operation of the steering wheel . ( Yellow )
These lines are displayed when the steering wheel is turned more than 90 degrees from the straight position .
C Intuitive parking assist
Displays an indicator on the screen and sounds a buzzer when an object is detected by a sensor . ( For details about the intuitive parking assist , see the " OWNER ’ S MANUAL ".)
Parking assist system
253
