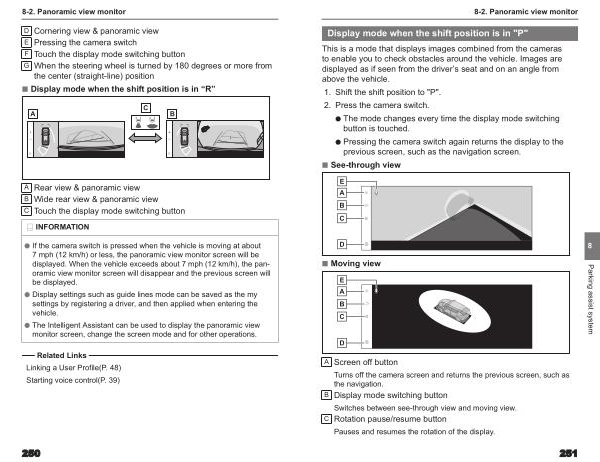

Display mode when the shift position is in " P "
This is a mode that displays images combined from the cameras to enable you to check obstacles around the vehicle . Images are displayed as if seen from the driver ’ s seat and on an angle from above the vehicle .
1 . Shift the shift position to " P ". 2 . Press the camera switch .
● The mode changes every time the display mode switching button is touched .
● Pressing the camera switch again returns the display to the previous screen , such as the navigation screen .
■ See-through view
8-2 . Panoramic view monitor
8
■ Moving view
Parking assist system
A Screen off button
Turns off the camera screen and returns the previous screen , such as the navigation .
B Display mode switching button Switches between see-through view and moving view .
C Rotation pause / resume button Pauses and resumes the rotation of the display .
251
